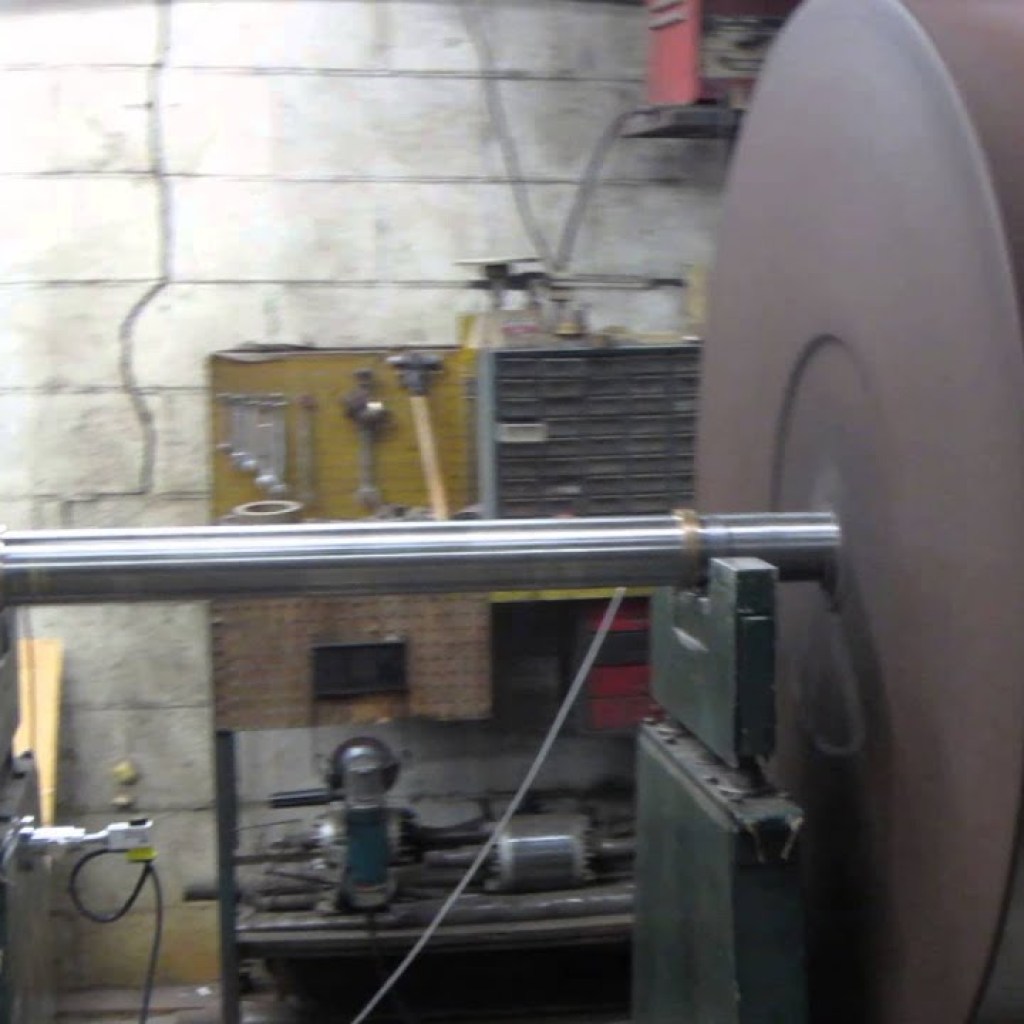

How to balance a blower wheel is a critical skill for anyone working with industrial fans or blowers. These powerful machines are designed to move large volumes of air, but an unbalanced blower wheel can cause significant problems, including excessive vibration, noise, and reduced efficiency. These issues not only impact the performance of the blower but can also lead to premature wear and tear, potentially resulting in costly repairs and downtime.
Balancing a blower wheel involves ensuring that its weight is evenly distributed, preventing it from wobbling or vibrating during operation. This process requires a combination of specialized tools and techniques, as well as a thorough understanding of blower wheel dynamics. In this comprehensive guide, we’ll delve into the intricacies of blower wheel balance, exploring the methods, tools, and safety considerations involved in achieving smooth and efficient operation.
Understanding Blower Wheel Dynamics
A blower wheel is a critical component in many industrial and commercial applications, responsible for generating airflow and pressure. Understanding the dynamics of a blower wheel is essential for ensuring optimal performance and longevity. This section will delve into the relationship between blower wheel speed, airflow, and pressure, explore factors affecting blower wheel balance, and examine the consequences of an unbalanced wheel.
Relationship Between Blower Wheel Speed, Airflow, and Pressure
The speed of a blower wheel directly influences the amount of airflow it generates and the pressure it creates. As the blower wheel rotates faster, it moves a larger volume of air per unit of time, resulting in higher airflow. The increased speed also creates a higher pressure differential between the inlet and outlet of the blower, leading to increased pressure.
The relationship between blower wheel speed, airflow, and pressure is generally linear. This means that as the speed increases, both airflow and pressure increase proportionally.
However, this linear relationship is not always absolute and can be affected by factors such as the blower design, the operating conditions, and the characteristics of the air being moved.
Factors Affecting Blower Wheel Balance
Blower wheel balance is crucial for smooth operation and reduced wear and tear. An unbalanced wheel can cause vibrations, noise, and reduced efficiency. Several factors can contribute to an unbalanced blower wheel:
- Manufacturing Defects: Imperfections in the manufacturing process, such as uneven material distribution or machining errors, can lead to an unbalanced wheel.
- Wear and Tear: Over time, wear and tear on the blower wheel, such as erosion from abrasive particles in the air or damage from impact, can cause an imbalance.
- Improper Installation: Incorrect installation of the blower wheel, such as misalignment or improper tightening of fasteners, can lead to an unbalanced wheel.
Consequences of an Unbalanced Blower Wheel
An unbalanced blower wheel can have several negative consequences, including:
- Vibrations: An unbalanced wheel creates centrifugal forces that cause the blower to vibrate. These vibrations can damage the blower itself, as well as other components in the system.
- Noise: The vibrations caused by an unbalanced wheel can generate significant noise, creating an unpleasant working environment and potentially exceeding noise regulations.
- Reduced Efficiency: An unbalanced wheel can cause energy loss due to increased friction and turbulence. This reduces the efficiency of the blower, resulting in higher operating costs and lower airflow.
Methods for Balancing a Blower Wheel
Balancing a blower wheel is crucial for smooth operation and longevity. Unbalanced wheels can cause excessive vibration, noise, and even damage to the blower and surrounding equipment. There are two main methods for balancing: static and dynamic.
Static Balancing
Static balancing is a simpler method that addresses the imbalance caused by the weight distribution around the wheel’s axis of rotation. It is typically performed on smaller blower wheels where the effects of dynamic imbalance are less significant.
- Static Balancing Machine: A static balancing machine consists of a rotating platform with a support for the blower wheel. It also includes a display that shows the amount of imbalance.
- Balancing Procedure:
- Mount the blower wheel on the rotating platform.
- Spin the wheel at a slow speed.
- The machine will measure the imbalance and indicate the location and amount of weight to be added or removed.
- Add or remove weight material (like lead weights) at the designated location to achieve balance.
- Repeat the process until the imbalance is minimized.
Dynamic Balancing
Dynamic balancing is a more complex method that addresses both static and dynamic imbalances. It accounts for the weight distribution and the location of the center of gravity relative to the axis of rotation. It is necessary for larger and higher-speed blower wheels where dynamic imbalance can significantly impact performance and stability.
- Dynamic Balancing Machine: A dynamic balancing machine is more sophisticated than a static balancing machine. It typically has two sets of sensors to measure the imbalance in two planes, allowing for the correction of both static and dynamic imbalances.
- Balancing Procedure:
- Mount the blower wheel on the rotating platform of the dynamic balancing machine.
- Spin the wheel at a controlled speed.
- The machine measures the imbalance in both planes and displays the location and amount of weight to be added or removed.
- Add or remove weight material (like lead weights) at the designated locations to achieve balance in both planes.
- Repeat the process until the imbalance is minimized.
Tools and Equipment for Balancing
Balancing a blower wheel is a meticulous process that requires specialized tools and equipment to achieve accurate results. These tools are essential for measuring the wheel’s imbalance, applying corrective weights, and verifying the final balance.
Essential Tools and Equipment
The following table lists the essential tools and equipment required for balancing a blower wheel:
| Tool Name | Description | Purpose |
|---|---|---|
| Balancing Machine | A specialized machine designed to measure and analyze the imbalance in rotating components like blower wheels. | Measures the magnitude and location of the imbalance in the blower wheel. |
| Precision Weights | Small, precisely manufactured weights made of materials like steel or brass. | Used to add or remove weight from specific locations on the blower wheel to correct the imbalance. |
| Torque Wrench | A wrench with a calibrated mechanism to apply a specific amount of torque. | Ensures that the weights are securely fastened to the blower wheel without overtightening. |
| Measuring Tape | A flexible tape used to measure distances and diameters. | Used to accurately measure the distances between the balancing plane and the location where weights are to be added. |
| Calipers | A measuring instrument with two jaws for measuring the thickness or diameter of objects. | Used to accurately measure the diameter of the blower wheel and the thickness of the weights. |
| Level | A tool used to determine whether a surface is horizontal or vertical. | Used to ensure that the blower wheel is mounted horizontally on the balancing machine. |
| Safety Glasses | Protective eyewear that shields the eyes from flying debris. | Protects the eyes from potential hazards during the balancing process. |
Troubleshooting and Maintenance
An unbalanced blower wheel can cause a variety of problems, including reduced efficiency, increased noise, and premature wear on the blower. Regular maintenance and inspection are crucial for identifying and addressing these issues before they escalate.
Identifying Signs of an Unbalanced Blower Wheel, How to balance a blower wheel
A blower wheel imbalance can manifest in various ways. Recognizing these signs allows for prompt intervention and prevents further damage.
- Excessive Vibration: A noticeable vibration throughout the blower system, particularly during operation, is a strong indicator of an imbalance. The vibration might be felt on the blower housing, piping, or surrounding structures.
- High Noise Levels: An unbalanced blower wheel can generate excessive noise, often described as a humming, rattling, or screeching sound. The noise level may fluctuate depending on the blower’s speed and load.
- Reduced Airflow: A significant drop in airflow output, even with the blower operating at its rated speed, suggests an imbalance hindering the blower’s performance.
- Premature Wear: An unbalanced blower wheel can put excessive stress on bearings, seals, and other components, leading to premature wear and tear. This can manifest as excessive bearing noise, leaking seals, or other component failures.
Importance of Regular Maintenance and Inspection
Regular maintenance and inspection of the blower wheel are essential to prevent imbalances and ensure optimal performance.
- Early Detection: Regular inspections allow for early detection of any signs of imbalance, preventing minor issues from escalating into major problems.
- Prolonged Lifespan: By addressing imbalances promptly, you can significantly prolong the lifespan of the blower and its components, reducing the need for costly replacements.
- Optimized Performance: Maintaining a balanced blower wheel ensures optimal airflow and efficiency, maximizing the blower’s performance and minimizing energy consumption.
- Reduced Downtime: Proactive maintenance helps avoid unexpected breakdowns and downtime, ensuring continuous operation and uninterrupted processes.
Blower Wheel Inspection Checklist
A simple checklist can guide your inspection for potential imbalances:
- Visual Inspection: Examine the blower wheel for any signs of damage, such as cracks, dents, or missing blades. Look for any signs of wear or corrosion that might affect its balance.
- Blade Alignment: Ensure all blades are properly aligned and evenly spaced. Any misalignment or uneven spacing can contribute to an imbalance.
- Weight Distribution: Visually assess the weight distribution of the blower wheel. Look for any areas where the weight might be concentrated or unevenly distributed.
- Vibration Assessment: Carefully feel the blower housing and surrounding components for any vibrations while the blower is operating. Excessive vibrations indicate an imbalance.
- Noise Level: Listen for any unusual noises coming from the blower, such as humming, rattling, or screeching. These sounds can indicate an imbalance.
Safety Considerations: How To Balance A Blower Wheel
Balancing a blower wheel involves working with rotating machinery, which presents inherent safety risks. It is crucial to prioritize safety throughout the process to prevent accidents and injuries.
Potential Safety Hazards
Balancing a blower wheel can expose individuals to various hazards. These include:
- Rotating Machinery: The blower wheel itself is a rotating component, and improper handling can lead to severe injuries. The spinning motion can cause entanglement, crushing, or impact injuries.
- High-Speed Operation: Blower wheels operate at high speeds, generating significant centrifugal forces. This can lead to the ejection of debris or parts during balancing, posing a projectile hazard.
- Vibration: Unbalanced blower wheels can cause excessive vibrations, potentially leading to equipment damage or instability. This vibration can also create a hazardous work environment.
- Noise: Balancing procedures may involve noisy equipment or processes. Prolonged exposure to high noise levels can cause hearing damage.
- Dust and Debris: Balancing may generate dust or debris from the blower wheel or surrounding equipment. Inhalation of these particles can pose health risks.
- Electrical Hazards: Balancing equipment may be electrically powered. It is essential to ensure proper grounding and safety procedures to prevent electrical shock.
Guidelines for Working Safely with Rotating Machinery
- Lockout/Tagout Procedures: Always use proper lockout/tagout procedures to de-energize and isolate the blower wheel before attempting any balancing work. This prevents accidental start-up.
- Personal Protective Equipment (PPE): Wear appropriate PPE, including safety glasses, gloves, hearing protection, and sturdy footwear. The specific PPE required will depend on the hazards present.
- Safe Work Practices: Maintain a clean and organized work area. Ensure adequate lighting. Avoid distractions and maintain focus on the task at hand.
- Trained Personnel: Only qualified and trained personnel should perform blower wheel balancing. They should be familiar with the equipment and procedures.
- Emergency Procedures: Ensure that emergency procedures are in place and that everyone involved knows how to respond to accidents or emergencies.
- Regular Inspections: Regularly inspect balancing equipment for wear and tear. Replace or repair any damaged or defective parts.
Importance of Wearing Appropriate Personal Protective Equipment (PPE)
Wearing appropriate PPE is crucial for protecting workers from hazards during blower wheel balancing. PPE acts as a barrier between the worker and potential hazards, minimizing the risk of injury.
- Safety Glasses: Protect eyes from flying debris, dust, and projectiles.
- Gloves: Protect hands from cuts, abrasions, and contact with rotating parts.
- Hearing Protection: Reduce exposure to high noise levels that can cause hearing damage.
- Sturdy Footwear: Provide protection from falling objects or heavy equipment.
- Respiratory Protection: In environments with dust or fumes, respirators may be necessary to protect the respiratory system.
Balancing a blower wheel is an essential maintenance task that ensures optimal performance and longevity. By understanding the principles of blower wheel dynamics, utilizing appropriate balancing techniques, and adhering to safety guidelines, you can effectively address any imbalances and maintain the smooth and efficient operation of your blower system. Remember that regular inspection and maintenance are crucial for preventing imbalances and extending the life of your equipment.
Detailed FAQs
What are the most common signs of an unbalanced blower wheel?
Common signs include excessive vibration, unusual noise, and a decrease in airflow or pressure. You may also notice uneven wear on the blower wheel or bearings.
How often should I balance my blower wheel?
The frequency of balancing depends on the operating conditions and the type of blower. However, it’s generally recommended to balance the blower wheel at least once a year or whenever you notice signs of imbalance.
Can I balance a blower wheel myself?
While some basic balancing tasks can be performed by skilled individuals, it’s recommended to consult with a professional for complex or critical applications. Proper balancing requires specialized tools and expertise to ensure accuracy.
What safety precautions should I take when balancing a blower wheel?
Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and hearing protection. Disconnect the blower from power and ensure that the blower wheel is completely stopped before working on it.
