How to adjust brakes on electric bike – a phrase that whispers of smooth rides and safe journeys. It’s a dance of mechanics, a symphony of precision, where each adjustment brings you closer to mastering your electric steed. Understanding the intricacies of your electric bike’s braking system isn’t just about stopping; it’s about gaining control, feeling the road beneath you, and enjoying the freedom of the ride.
This guide delves into the heart of your electric bike’s brakes, offering a comprehensive roadmap to understanding, adjusting, and maintaining these crucial components. We’ll explore the different types of brakes, the tools needed, and the steps involved in adjusting each system. Whether you’re a seasoned rider or a curious newcomer, this guide provides the knowledge and confidence to ensure your brakes are in top shape, ready to meet every challenge on the road.
Understanding Electric Bike Brakes
Electric bike brakes are essential for controlling speed and stopping safely. Understanding the different types of brakes and how they work is crucial for maintaining your e-bike and ensuring a safe riding experience.
Types of Electric Bike Brakes
Electric bikes utilize two primary brake systems: mechanical and hydraulic. Each system has its own advantages and disadvantages, making the choice a matter of personal preference and riding style.
- Mechanical Brakes: Mechanical brakes use a cable to transfer force from the brake lever to the brake calipers. They are typically more affordable and easier to maintain than hydraulic brakes. However, they can be less responsive and require more effort to engage, especially in wet conditions.
- Hydraulic Brakes: Hydraulic brakes use a fluid-filled line to transfer force from the brake lever to the calipers. This system provides a more responsive and powerful braking experience, especially under heavy braking conditions. Hydraulic brakes are also less susceptible to weather conditions. However, they are more expensive and require more specialized maintenance.
Components of an Electric Bike Brake System
Regardless of the type, most electric bike brake systems share common components. Understanding these components helps in troubleshooting and maintaining the brakes effectively.
- Brake Levers: Located on the handlebars, brake levers allow the rider to control the braking force.
- Brake Cables (Mechanical): These cables connect the brake lever to the brake calipers, transmitting the force to engage the brakes.
- Hydraulic Lines (Hydraulic): These lines carry brake fluid, transferring force from the brake lever to the calipers.
- Brake Calipers: These calipers house the brake pads and are responsible for squeezing the brake pads against the rotor or rim to create friction and slow down the wheel.
- Brake Pads: These pads are made of a friction material and are responsible for creating the friction needed to stop the wheel.
- Rotors (Disc Brakes): These are metal discs attached to the wheel hub. Brake pads clamp onto the rotors to create friction and slow down the wheel.
- Rims (Rim Brakes): These are the outer edges of the wheels. Brake pads clamp onto the rims to create friction and slow down the wheel.
Importance of Brake Maintenance
Proper brake maintenance is crucial for safety and optimal performance. Neglecting brake maintenance can lead to reduced braking power, longer stopping distances, and even brake failure.
- Regular Inspections: Inspect brake pads for wear and tear, check for any damage to the brake calipers, and ensure the brake levers are properly adjusted.
- Cleaning and Lubrication: Clean brake components regularly to remove dirt and debris. Lubricate moving parts, such as cables and brake calipers, to ensure smooth operation.
- Brake Pad Replacement: Replace worn-out brake pads promptly to maintain optimal braking performance.
- Bleeding Hydraulic Brakes: Bleeding hydraulic brakes removes air bubbles from the brake lines, ensuring proper fluid flow and optimal braking performance.
Tools and Materials
Adjusting brakes on an electric bike requires a few basic tools and materials. Having the right tools and materials will make the process easier and ensure a safe and effective brake adjustment.
It’s important to use the correct tools and materials for your specific brake system. Different brake systems require different tools and materials. For example, mechanical disc brakes use cable adjusters, while hydraulic disc brakes use bleed kits.
Essential Tools
These tools are essential for adjusting brakes on most electric bikes:
- Allen wrenches: A set of Allen wrenches, ranging from 2mm to 8mm, is necessary for adjusting brake calipers, brake levers, and other components.
- Torx wrenches: Some electric bikes use Torx bolts for brake components. A set of Torx wrenches is essential for working with these bolts.
- Phillips screwdriver: A Phillips screwdriver is often used to tighten or loosen screws on brake levers and other components.
- Cable cutters: Cable cutters are necessary for trimming brake cables to the correct length.
- Pliers: Pliers are useful for adjusting brake cables and tightening or loosening nuts and bolts.
- Brake pad spreader: A brake pad spreader helps to separate brake pads for easier adjustment.
- Cleaning cloth: A cleaning cloth is essential for cleaning brake components before and after adjustment.
Materials
These materials are essential for brake adjustments:
- Brake pads: Brake pads wear down over time and need to be replaced. Choose brake pads specifically designed for your type of brake system (rim, disc, etc.).
- Grease: Use a specialized brake grease for lubricating brake cables and cable adjusters. This helps prevent corrosion and ensures smooth cable operation.
- Degreaser: Degreaser is essential for cleaning brake components before applying grease or installing new brake pads. Choose a degreaser specifically designed for bicycle components.
- Brake fluid: If you have hydraulic disc brakes, you will need brake fluid. Choose brake fluid specifically designed for your type of brake system.
Brake System Compatibility
This table shows the compatibility of different brake systems with various tools and materials:
| Brake System | Tools | Materials |
|---|---|---|
| Rim brakes | Allen wrenches, Phillips screwdriver, cable cutters, pliers | Brake pads, grease, degreaser |
| Mechanical disc brakes | Allen wrenches, Torx wrenches, cable cutters, pliers, brake pad spreader | Brake pads, grease, degreaser |
| Hydraulic disc brakes | Allen wrenches, Torx wrenches, brake bleed kit | Brake pads, brake fluid, grease, degreaser |

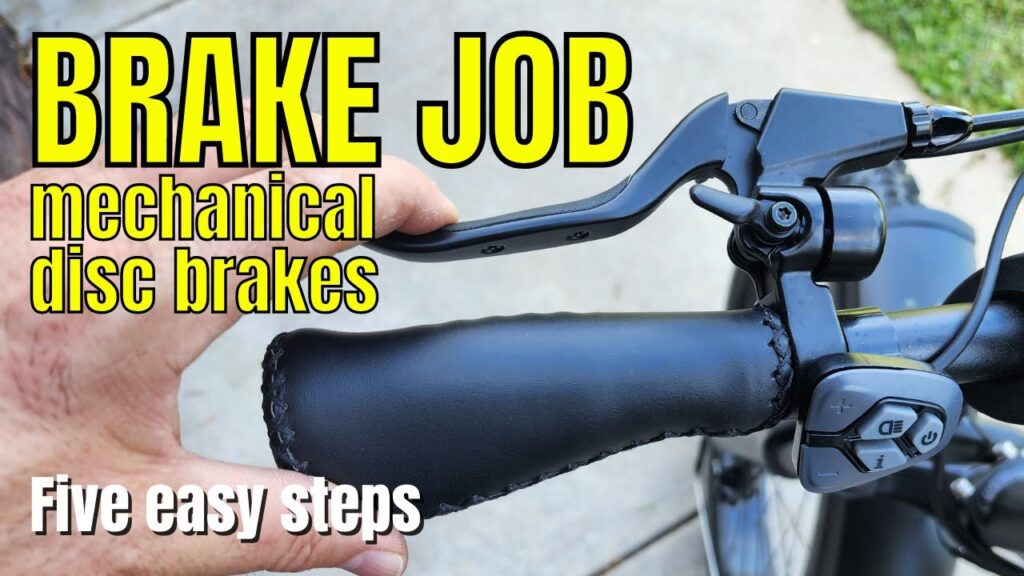

Adjusting Mechanical Disc Brakes
Mechanical disc brakes are a popular choice for electric bikes due to their reliability and ease of maintenance. However, they require periodic adjustment to ensure optimal performance and braking power. This section will guide you through the steps involved in adjusting your mechanical disc brakes for a smooth and safe riding experience.
Adjusting Caliper Position
Proper caliper position is crucial for ensuring even brake pad wear and optimal braking performance. The brake pads should be centered and aligned with the rotor, leaving a small gap between the pads and the rotor. Here’s how to adjust the caliper position:
- Loosen the caliper mounting bolts slightly.
- Use a small wrench or screwdriver to adjust the caliper position, moving it closer or further away from the rotor as needed.
- Tighten the mounting bolts securely once the caliper is properly positioned.
You can check the alignment by rotating the wheel and ensuring that the brake pads are equally spaced from the rotor.
Adjusting Brake Lever Reach
The brake lever reach should be adjusted to comfortably fit your hand size and provide adequate braking power. A proper reach ensures that you can easily engage the brakes and apply the necessary force.
- Locate the brake lever reach adjustment knob or screw. This is usually found on the underside of the brake lever.
- Turn the knob or screw clockwise to decrease the reach, making the lever closer to the handlebar. Conversely, turn it counter-clockwise to increase the reach, moving the lever further away from the handlebar.
- Adjust the reach until the brake lever is comfortably positioned and allows you to apply sufficient braking force without excessive hand strain.
Bleeding Mechanical Disc Brakes
Over time, air can accumulate in the hydraulic lines of your mechanical disc brakes, leading to a spongy brake feel and reduced braking power. Bleeding the brakes removes this air and restores proper hydraulic pressure.
- Gather the necessary tools: a bleeding kit, brake fluid, a clean rag, and a container to collect the old fluid.
- Locate the bleed nipple on the brake caliper and the reservoir on the brake lever.
- Open the bleed nipple slightly and then pump the brake lever several times to push the old fluid out.
- Close the bleed nipple and top off the brake fluid reservoir.
- Repeat the process until clear fluid emerges from the bleed nipple, indicating that all the air has been removed.
Adjusting Hydraulic Disc Brakes: How To Adjust Brakes On Electric Bike
Hydraulic disc brakes are a popular choice for electric bikes due to their powerful braking performance and ease of adjustment. They utilize a closed system filled with brake fluid, which transmits pressure from the lever to the calipers, engaging the brake pads against the rotor. However, over time, air can enter the system, reducing braking power and requiring bleeding to restore optimal performance.
Bleeding Hydraulic Disc Brakes
Bleeding hydraulic disc brakes removes air from the system, ensuring proper fluid flow and consistent braking. This process involves opening the brake system and forcing fluid through it, expelling any trapped air.
Tools and Materials
- Brake bleeding kit: This kit typically includes a syringe, tubing, and a catch bottle for collecting the expelled fluid.
- Brake fluid: Use a compatible brake fluid for your system, as specified by the manufacturer.
- Clean rags: To wipe up any spills or excess fluid.
- Torque wrench: To tighten bolts to the correct specifications.
- Safety glasses: To protect your eyes from brake fluid splashes.
Procedure
- Prepare the bike: Ensure the bike is securely supported on a stand or work area. Remove any obstructions near the brake system.
- Open the system: Locate the bleed screw at the caliper and the reservoir on the brake lever. Loosen the bleed screw slightly.
- Fill the reservoir: Add brake fluid to the reservoir, ensuring it is filled to the proper level. Do not overfill.
- Attach the bleeding kit: Connect the syringe to the bleed screw and the tubing to the catch bottle. Ensure the tubing is securely attached to prevent leaks.
- Purge the air: Slowly depress the brake lever while holding the bleed screw closed. Release the lever and open the bleed screw slightly to allow fluid to flow into the catch bottle. Repeat this process until clear fluid emerges from the bleed screw.
- Close the system: Tighten the bleed screw and remove the bleeding kit. Ensure the brake lever is fully depressed and then release it to ensure the brake pads are properly seated.
- Check for leaks: Inspect the system for any leaks. If there are leaks, tighten the bleed screw or any loose fittings.
- Test the brakes: Test the brakes by applying pressure to the lever. The brakes should feel firm and responsive.
Importance of Maintaining Proper Brake Fluid Levels
Maintaining proper brake fluid levels is crucial for the efficient operation of hydraulic disc brakes. Low brake fluid levels can lead to air entering the system, reducing braking performance and potentially causing brake failure.
Consequences of Air in the System
- Reduced braking power: Air in the system compresses under pressure, making it less effective in transmitting force to the calipers.
- Spongy lever feel: Air bubbles in the system can create a spongy or mushy feel when applying the brake lever.
- Brake fade: As air accumulates in the system, braking performance may deteriorate, especially under prolonged braking conditions.
- Potential brake failure: In extreme cases, air in the system can lead to complete brake failure, posing a serious safety hazard.
Adjusting the Brake Lever
The brake lever can be adjusted to optimize lever feel and stopping power. This adjustment typically involves adjusting the lever reach, which determines how far the lever needs to be pulled before engaging the brakes.
Lever Feel and Stopping Power
- Lever reach: Adjust the lever reach to suit your hand size and riding style. A shorter reach provides quicker braking response, while a longer reach offers more leverage.
- Lever feel: Adjust the lever feel to achieve the desired amount of pressure required to engage the brakes. A firmer lever feel provides more braking power, while a softer feel offers a more gradual braking response.
Adjustment Procedure
- Locate the adjustment knob: Most brake levers have an adjustment knob located on the lever blade or near the clamp.
- Turn the knob: Turn the knob clockwise to shorten the reach or counterclockwise to lengthen the reach.
- Test the adjustment: After adjusting the lever, test the brakes by applying pressure to the lever. Repeat the adjustment process until you achieve the desired lever feel and stopping power.
Adjusting Rim Brakes
Rim brakes are a common type of brake found on many electric bikes. They work by applying pressure to the rim of the wheel using brake pads, which slows the bike down. To ensure optimal braking performance, it is crucial to adjust the brake cable tension to ensure proper rim contact. This involves ensuring that the brake pads are properly aligned with the rim and that the brake cable tension is set correctly.
Adjusting Brake Cable Tension
Adjusting the brake cable tension is essential for ensuring proper rim contact. The following steps provide a guide for adjusting the brake cable tension:
- Locate the brake cable adjuster. This is typically a small barrel adjuster located on the brake lever or near the brake caliper.
- With the brake lever released, turn the barrel adjuster to increase or decrease the cable tension. Turning the adjuster clockwise increases tension, while turning it counter-clockwise decreases tension.
- Apply the brake lever and check the brake pad clearance. The brake pads should be close enough to the rim to provide braking force but not so close that they rub against the rim when the brake lever is released.
- Adjust the cable tension until the brake pads are properly aligned with the rim and the brake lever engages smoothly without rubbing.
- Repeat steps 2-4 for the other brake lever if necessary.
Ensuring Even Brake Pad Wear, How to adjust brakes on electric bike
Even brake pad wear is crucial for maintaining optimal braking performance and preventing premature wear on the brake pads and rims.
- Inspect the brake pads regularly for wear. If one brake pad is wearing faster than the other, adjust the brake cable tension to ensure even wear.
- Ensure that the brake pads are properly aligned with the rim. Misalignment can lead to uneven wear and reduce braking effectiveness.
- Replace worn brake pads promptly. Worn brake pads can compromise braking performance and increase the risk of accidents.
Troubleshooting Common Rim Brake Issues
Rim brakes can experience various issues, including brake squealing and uneven braking. Here are some troubleshooting tips:
- Brake Squealing: This is usually caused by brake pad contamination or misalignment. Clean the brake pads and rims with a suitable cleaner, and ensure that the brake pads are properly aligned with the rim.
- Uneven Braking: This is often caused by uneven brake pad wear or misalignment. Inspect the brake pads for wear and ensure that they are properly aligned with the rim.
Adjust the brake cable tension as needed to ensure even brake pad wear.
Safety Precautions
Adjusting brakes on an electric bike is an important maintenance task that can significantly impact your safety. While the process can be relatively straightforward, it’s crucial to prioritize safety during every step. Neglecting safety precautions can lead to accidents, injuries, and damage to your bike.
Safety Gear
Wearing appropriate safety gear is essential for protecting yourself from potential hazards during brake adjustments.
- Eye Protection: Always wear safety glasses or goggles to shield your eyes from flying debris or brake fluid splashes.
- Gloves: Use gloves to protect your hands from cuts, abrasions, and exposure to brake fluid.
- Closed-Toe Shoes: Wear closed-toe shoes to protect your feet from falling tools or accidental drops.
Handling Brake Fluid
Brake fluid is a hazardous substance that can cause skin irritation, eye damage, and even fire if not handled properly.
- Ventilation: Work in a well-ventilated area to prevent the buildup of fumes.
- Skin Contact: Avoid direct contact with brake fluid. If you do come into contact with it, wash the affected area immediately with soap and water.
- Eye Contact: If brake fluid gets in your eyes, flush them with water for at least 15 minutes and seek medical attention.
- Disposal: Dispose of brake fluid responsibly according to local regulations.
Other Precautions
- Work on a Stable Surface: Ensure that your bike is securely supported on a stand or a stable surface before starting any adjustments.
- Avoid Distractions: Focus on the task at hand and avoid distractions.
- Proper Tools: Use the correct tools for the job.
- Consult the Manual: Refer to your electric bike’s manual for specific instructions and safety recommendations.
- Professional Help: If you are unsure about any aspect of the brake adjustment process, seek professional assistance from a qualified mechanic.
Adjusting your electric bike’s brakes isn’t just a task; it’s a journey of understanding and empowerment. By mastering the intricacies of your braking system, you unlock a deeper connection with your ride, experiencing the smooth, responsive stopping power that brings confidence and joy to every adventure. Remember, maintaining your brakes is an ongoing process, ensuring a safe and enjoyable experience for every journey, whether you’re exploring the open road or navigating the urban jungle.
FAQ Guide
What type of brake fluid should I use for my hydraulic disc brakes?
Use a mineral oil-based brake fluid specifically designed for hydraulic disc brakes. Avoid using DOT brake fluid as it can damage the seals in your system.
How often should I adjust my electric bike brakes?
It’s recommended to check and adjust your brakes every few months or after a significant amount of riding, especially if you notice any changes in braking performance.
Can I adjust my electric bike brakes without any tools?
While some basic adjustments might be possible without tools, it’s highly recommended to use the appropriate tools for a safe and effective adjustment.
What should I do if my electric bike brakes are making a squeaking noise?
Squeaking brakes often indicate worn or dirty brake pads. Clean the brake pads and rotors, or replace the pads if necessary. If the squeaking persists, there might be other issues with the brake system.
How can I tell if my brake pads are worn out?
You can visually inspect the brake pads to see if the wear indicator is visible. If the pads are worn down to the metal, it’s time to replace them.
