A/C O-Ring The Unsung Hero of Your AC System

A/c o ring – A/C O-ring, a tiny but mighty component, plays a crucial role in keeping your air conditioner running smoothly. These small, circular seals, often made from materials like rubber or nitrile, are responsible for preventing refrigerant leaks, which are essential for the proper functioning of your AC system.

Think of an A/C O-ring as the guardian of your AC’s cool air. It ensures that the refrigerant, the substance responsible for cooling the air, stays within the system. A damaged or worn-out O-ring can lead to refrigerant leaks, causing your AC to lose its cooling power and potentially even harm the environment.

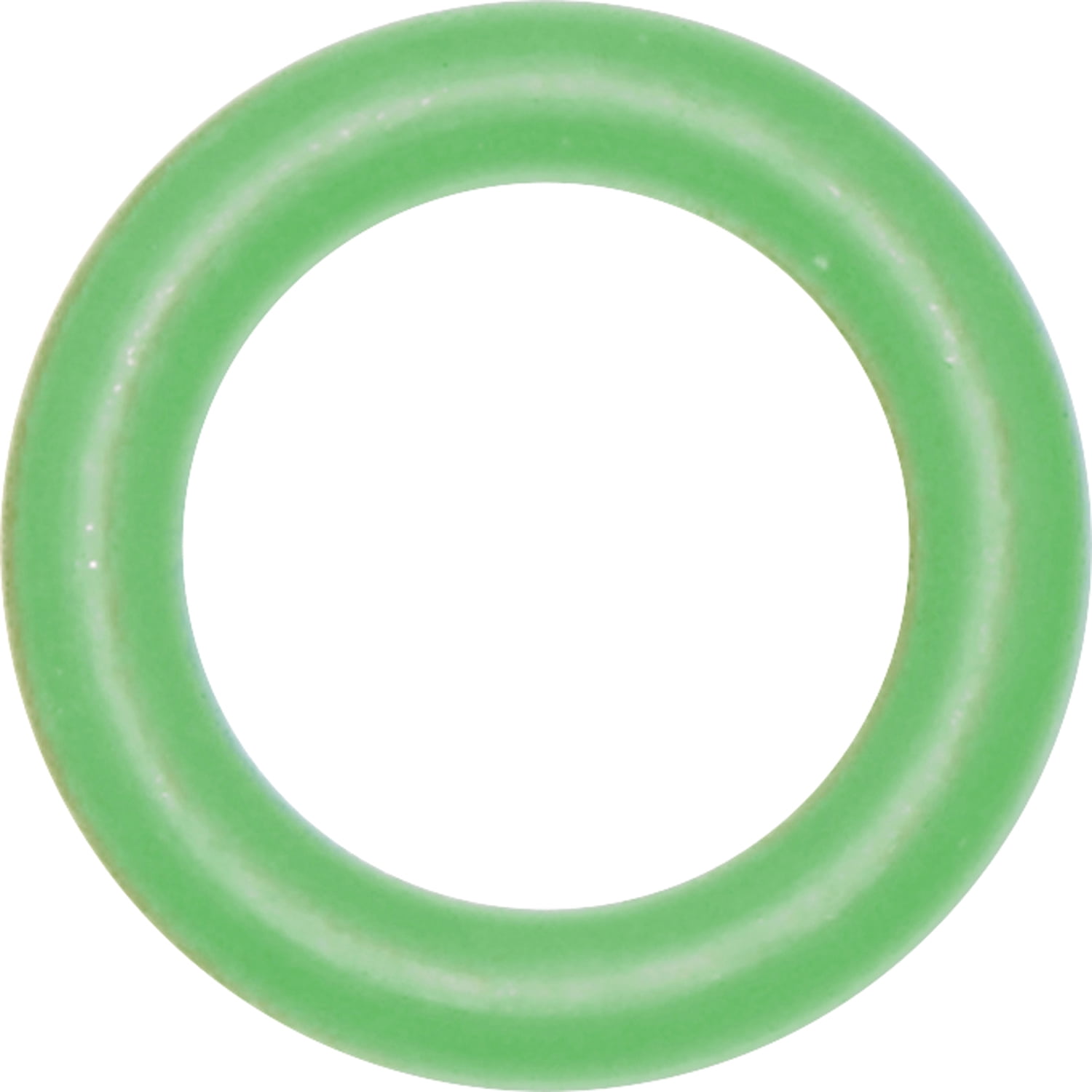

What is an A/C O-Ring?

Think of your car’s air conditioning system as a delicate dance of cool air, and guess what? O-rings are the ballerinas of this dance! They’re the tiny but mighty seals that keep the refrigerant flowing smoothly, preventing leaks and ensuring your AC stays frosty.

Function of an A/C O-Ring

An A/C O-ring’s primary job is to act as a barrier between different components in your car’s AC system. It creates a tight seal, preventing refrigerant, a crucial component for cooling, from escaping. Think of it like a tiny, circular guardian protecting your car’s AC from a refrigerant-induced meltdown.

Materials Used in A/C O-Ring Manufacturing

O-rings are made from various materials, each with its own unique properties. Here’s a peek into the world of O-ring materials:

Nitrile Rubber (NBR): This is the most common material for A/C O-rings. It’s known for its flexibility, durability, and resistance to oils and refrigerants. Think of it as the reliable workhorse of the O-ring world.
Ethylene Propylene Diene Monomer (EPDM): EPDM is another popular choice for A/C O-rings. It’s renowned for its excellent resistance to heat, ozone, and weathering, making it a top contender for high-temperature applications.
Fluoroelastomer (FKM): FKM is a high-performance material that can withstand extreme temperatures and harsh chemicals. It’s often used in high-pressure applications, where its resilience and resistance to leaks are crucial.

Sizes and Shapes of A/C O-Rings

A/C O-rings come in a wide range of sizes and shapes to fit different components in your AC system.

Size: O-rings are measured by their cross-sectional diameter, which is the thickness of the ring. The most common sizes for A/C O-rings range from 1/16 inch to 1/4 inch.
Shape: O-rings are typically circular, but they can also come in other shapes, such as rectangular or square, depending on the specific application.

Importance of A/C O-Rings

Think of your car’s air conditioner as a delicate ecosystem where the refrigerant, the cool air’s hero, needs to stay put. Those little A/C O-rings are like tiny, tireless guards, ensuring that refrigerant doesn’t escape and leave you sweltering in a hot car. They’re the unsung heroes of a comfortable ride.

Preventing Refrigerant Leaks

Refrigerant leaks are a common problem, and guess who’s usually the culprit? You guessed it – those pesky O-rings. They’re often the first line of defense against refrigerant escaping from your car’s air conditioning system. These tiny seals are strategically placed in the A/C system’s components, like the compressor, condenser, evaporator, and expansion valve, to prevent the refrigerant from escaping.

They work by creating a tight seal that prevents refrigerant from leaking out, ensuring the system runs smoothly.

Impact of Faulty O-Rings on A/C Performance, A/c o ring

Faulty O-rings are like tiny saboteurs, causing big problems for your air conditioning system. They can lead to a variety of issues, including:

Reduced cooling performance: When refrigerant leaks out, the system can’t function properly, resulting in a lukewarm breeze instead of the refreshing blast you crave.
Increased energy consumption: A leaking system has to work harder to compensate for the lost refrigerant, leading to higher fuel consumption and a bigger dent in your wallet.
System damage: If a leak isn’t addressed promptly, the lack of refrigerant can cause damage to the compressor, leading to costly repairs.

Environmental Impact of Refrigerant Leaks

Refrigerant leaks aren’t just a car problem; they’re a global issue. These leaks can release harmful gases into the atmosphere, contributing to climate change. Some refrigerants are potent greenhouse gases, meaning they trap heat in the atmosphere, making the planet warmer.

“Refrigerants can be up to 1,430 times more potent than carbon dioxide in trapping heat in the atmosphere.” – EPA

This is why it’s crucial to ensure your A/C system is properly maintained, with those O-rings in tip-top shape.

Common A/C O-Ring Problems

Let’s face it, A/C O-rings are the unsung heroes of your car’s cooling system. They’re small, but mighty, holding everything together and keeping your car cool under pressure. But even heroes get tired, and these little guys can succumb to the wear and tear of time, heat, and the occasional freon leak.

Common A/C O-Ring Issues

So what are the most common problems these tiny heroes face? Well, it’s not exactly a glamorous life. They’re constantly exposed to high pressure, fluctuating temperatures, and the occasional chemical attack from refrigerant. This can lead to:

O-ring deterioration: Like a rubber band left in the sun, O-rings can become brittle and crack, losing their ability to seal properly. This happens over time due to exposure to heat, UV rays, and chemicals. Imagine them as tiny rubber warriors battling the elements!
O-ring compression: Imagine squeezing a rubber band too tightly – it loses its elasticity. That’s what happens to O-rings when they’re compressed too much. This can occur during installation or due to excessive pressure, leading to a weak seal.
O-ring damage: These little guys are tough, but they can be easily damaged during installation or maintenance. A sharp tool, a misplaced finger, or even a rogue piece of debris can cause a tear or nick, compromising the seal. It’s like giving your warrior a nasty scratch!

Causes of O-Ring Wear and Tear

Now, let’s get to the root of the problem. Why do these O-rings wear out in the first place?

Age: Like all things, O-rings get old and tired. Over time, the materials become less flexible and more prone to cracking. Even if they haven’t been exposed to harsh conditions, age alone can take its toll.
Exposure to Heat: Imagine a rubber band sitting in the sun – it gets brittle and weak. That’s what happens to O-rings exposed to high temperatures. The heat can cause them to harden and lose their ability to seal properly.
Exposure to Chemicals: Refrigerant, while essential for cooling, can be harsh on O-rings. Over time, it can cause them to deteriorate and weaken. It’s like a chemical attack on our little warriors!
Improper Installation: Just like building a house, a proper foundation is crucial. If O-rings are not installed correctly, they can be damaged or compressed too much, leading to leaks.

Signs of a Damaged A/C O-Ring

So how do you know if your O-rings are on their last legs? Look out for these signs:

Refrigerant Leak: This is the most obvious sign. If you see refrigerant leaking, it’s a clear indication that an O-ring is failing. You might even hear a hissing sound.
A/C System Not Working: If your A/C system isn’t blowing cold air, it could be due to a refrigerant leak caused by a damaged O-ring.
Low Refrigerant Levels: If your A/C system is low on refrigerant, it could be due to a leak, which might be caused by a failing O-ring.
Visible Damage: If you can see a damaged or cracked O-ring, it’s time for a replacement.

Replacing A/C O-Rings

Replacing A/C O-rings is a common maintenance task that can help keep your car’s air conditioning system running smoothly. It’s like giving your car’s AC system a spa day, but instead of cucumbers, we’re using O-rings!

O-Ring Replacement Procedure

Replacing an A/C O-ring is a relatively simple process, but it’s important to follow the correct steps to avoid damaging the system. Here’s a step-by-step guide:

Locate the O-ring. O-rings are typically found on components like the compressor, condenser, evaporator, and expansion valve. If you’re not sure where to look, consult your car’s service manual. It’s like a treasure map, but instead of buried gold, you’re searching for a tiny rubber ring.
Remove the old O-ring. Carefully remove the old O-ring using a small screwdriver or a pair of pliers. If the O-ring is stuck, try using a lubricant to help loosen it. Think of it like a stubborn party guest, but instead of a glass of wine, you’re offering a little lubricant to help them on their way.
Clean the O-ring groove. Clean the groove where the O-ring sits using a clean cloth or a brush. This will ensure a proper seal for the new O-ring. Think of it like cleaning your car’s windshield before applying a new wiper blade. You want a smooth, clean surface for a perfect fit.
Install the new O-ring. Carefully install the new O-ring in the groove. Make sure the O-ring is seated properly and is not pinched or damaged. This is the moment of truth, where you carefully place the new O-ring in its designated spot. Treat it with respect, and it will reward you with a cool, comfortable ride.
Reassemble the system. Reassemble the system according to the manufacturer’s instructions. Make sure all parts are properly tightened. You’re essentially putting the pieces of the puzzle back together, but instead of a picture of a cat, you’re assembling a cool and refreshing AC system.

Selecting the Correct O-Ring

Choosing the right O-ring is crucial for a proper seal. Here’s what you need to consider:

Size: The O-ring must be the correct size to fit the groove. Measure the diameter and cross-section of the old O-ring to ensure you get the right replacement. Think of it like finding the perfect pair of shoes. The wrong size, and you’ll be in for a bumpy ride.
Material: O-rings are made from different materials, each with its own properties. The most common materials are nitrile rubber (NBR), ethylene propylene diene monomer (EPDM), and fluorocarbon (FKM). Choose a material that is compatible with the refrigerant used in your system. Think of it like choosing the right fabric for your clothes. You want something that’s durable, comfortable, and appropriate for the situation.
Compatibility: Make sure the O-ring is compatible with the refrigerant used in your system. Check the manufacturer’s specifications for compatibility. You wouldn’t want to mix and match ingredients in a recipe, and the same goes for your car’s AC system. Use the right O-ring for the right refrigerant, and your system will be happy.

Tools and Equipment

To replace an A/C O-ring, you’ll need a few basic tools:

Small screwdriver or pliers: To remove the old O-ring.
Clean cloth or brush: To clean the O-ring groove.
O-ring removal tool (optional): This tool can help make the process easier, especially for stubborn O-rings. Think of it like a special wrench designed to loosen those pesky O-rings.
New O-ring: The correct size and material for your system.
Torque wrench (optional): To ensure proper tightening of the components.

Preventive Maintenance

Think of your car’s air conditioning system as a delicate ecosystem. Just like a rainforest, it needs regular maintenance to thrive. Neglecting it can lead to leaks, breakdowns, and a sweltering summer. Preventive maintenance is your shield against the heat and a key to keeping your A/C running smoothly.

A/C O-Ring Inspection Checklist

A regular inspection routine is your first line of defense. Here’s a checklist to keep those O-rings in tip-top shape:

Visual Inspection: Look for any signs of wear, cracking, or damage. Remember, even the smallest crack can lead to a big leak.
Feel for Hardness: A healthy O-ring should be firm but not rock-hard. If it’s too soft or too hard, it might be time for a replacement.
Check for Debris: Dirt, dust, and other debris can compromise an O-ring’s seal. Clean any debris you find with a soft cloth and a mild cleaner.

Lubricant Compatibility

Just like choosing the right sunscreen for your skin, selecting the right lubricant for your A/C O-rings is crucial. The wrong lubricant can cause the O-ring to swell, shrink, or even dissolve, leading to leaks and system failures.

Always use a lubricant specifically designed for A/C O-rings. Consult your owner’s manual or a qualified mechanic for recommendations.

Storing and Handling A/C O-Rings

A/C O-rings are sensitive creatures. They don’t like extreme temperatures, direct sunlight, or harsh chemicals. Here’s how to keep them happy:

Store in a Cool, Dry Place: Avoid storing them in hot attics or damp basements.
Protect from Sunlight: Direct sunlight can degrade the O-ring material.
Keep Them Clean: Don’t handle them with dirty hands.

Types of A/C O-Rings: A/c O Ring

Okay, so you know those little rubber donuts in your AC system? They’re not just there for decoration, they’re actually the unsung heroes of keeping your car cool. But just like your favorite donut shop, there are different types of A/C O-rings, each with its own unique flavor, or, you know, material and purpose. Let’s dive into the world of A/C O-rings, where the rubber meets the road (and the refrigerant).

Materials Used for A/C O-Rings

Choosing the right material for an A/C O-ring is like picking the right outfit for a party. You wouldn’t wear a swimsuit to a formal dinner, right? Similarly, different materials have different strengths and weaknesses, depending on the application. Here are some common materials used for A/C O-rings:

Nitrile Rubber (NBR): This is the most common material for A/C O-rings. It’s like the classic little black dress of O-rings – versatile, durable, and affordable. It’s good for general applications and can handle a wide range of temperatures and pressures.
Ethylene Propylene Diene Monomer (EPDM): This material is known for its excellent resistance to chemicals and ozone. It’s like the stylish, eco-friendly option for your O-ring wardrobe. EPDM is often used in applications where the O-ring will be exposed to harsh chemicals, such as refrigerants.
Fluoroelastomer (FKM): This material is the high-end option, known for its exceptional resistance to heat, chemicals, and solvents. It’s like the designer dress of O-rings, but it comes with a higher price tag. FKM is often used in high-pressure applications and for systems using specific refrigerants.
Silicone Rubber: This material is known for its flexibility and ability to withstand extreme temperatures. It’s like the comfy, stretchy sweatpants of O-rings. Silicone is often used in applications where the O-ring needs to be able to move or flex, such as in compressors or expansion valves.

Types of A/C O-Rings Based on Application

Now, let’s talk about how these different O-rings are used in your AC system. Think of it as a cast of characters, each playing a crucial role in keeping your car cool.

Compressor O-Rings: These are the workhorses of the system, sealing the compressor and preventing refrigerant leaks. They’re often made of nitrile rubber or fluoroelastomer, depending on the type of compressor and refrigerant used.
Condenser O-Rings: These O-rings seal the condenser, which is responsible for cooling the refrigerant. They’re usually made of nitrile rubber or EPDM, as they need to be resistant to both heat and chemicals.
Evaporator O-Rings: These O-rings seal the evaporator, which is where the refrigerant absorbs heat from the air inside your car. They’re often made of nitrile rubber or silicone, as they need to be flexible and resistant to both heat and cold.
Expansion Valve O-Rings: These O-rings seal the expansion valve, which controls the flow of refrigerant. They’re often made of nitrile rubber or silicone, as they need to be flexible and resistant to both heat and cold.
Receiver Drier O-Rings: These O-rings seal the receiver drier, which removes moisture and contaminants from the refrigerant. They’re often made of nitrile rubber or EPDM, as they need to be resistant to both heat and chemicals.

From preventing refrigerant leaks to ensuring optimal AC performance, A/C O-rings are vital components that deserve our attention. Understanding their function, recognizing signs of trouble, and performing regular maintenance can help you keep your AC system running efficiently and prolong its lifespan. So, next time you hear that satisfying hum of your air conditioner, remember the silent heroes working hard behind the scenes – the A/C O-rings.

FAQ Section

What are the signs of a leaking A/C O-ring?

A leaking A/C O-ring can manifest in several ways, including a decrease in cooling performance, a hissing sound coming from the AC system, and a sweet smell of refrigerant.

How often should I replace my A/C O-rings?

While O-rings can last for years, they eventually wear out due to heat, pressure, and exposure to refrigerant. It’s a good practice to inspect and replace them during routine AC maintenance, typically every 2-3 years.

Can I replace A/C O-rings myself?

While replacing O-rings can seem straightforward, it’s often best left to professionals, especially if you’re dealing with a complex AC system. They have the expertise and tools to ensure the job is done correctly.
