How does a governor work on a small engine? This insightful guide delves into the fascinating mechanisms that regulate speed in small engines. From basic principles to intricate adjustments, you’ll gain a comprehensive understanding of these vital components.
Governors are essential for maintaining stable engine speed, especially in applications where consistent power output is critical. Understanding their function, operation, and maintenance allows you to optimize engine performance and longevity. This detailed explanation will walk you through the intricacies of centrifugal and spring-loaded governors, covering everything from component functions to troubleshooting techniques.
Governor Basics
A governor is a crucial component in small engines, automatically regulating the engine speed to maintain a stable operating point. It achieves this by sensing the engine speed and adjusting the fuel supply accordingly. This precise control prevents the engine from accelerating uncontrollably or slowing down excessively, ensuring consistent performance and preventing damage.A typical governor mechanism employs a feedback loop, where the engine speed is constantly monitored and adjusted.
The governor senses the speed and adjusts the fuel flow or the air intake to match the desired operating point. This self-regulating system is vital for smooth operation, particularly in applications where constant speed is required.
Centrifugal Governor Components
Centrifugal governors utilize the centrifugal force generated by rotating components to sense and respond to speed changes. Understanding their fundamental components is essential to comprehending their function.
- Flyweights: These are the rotating masses that sense the engine speed. As the engine speed increases, the centrifugal force acting on the flyweights also increases, causing them to move outward. Conversely, decreasing engine speed reduces the centrifugal force, and the flyweights move inward.
- Pivot arms: These arms connect the flyweights to the governor mechanism, transferring the motion of the flyweights to the control elements.
- Control spring: A spring provides the restoring force that keeps the flyweights centered. This spring counteracts the centrifugal force, allowing the governor to return to its original position when the engine speed decreases. The spring’s tension determines the speed range over which the governor operates effectively.
- Control lever: This lever transmits the movement of the governor to the fuel supply mechanism, regulating the amount of fuel injected into the engine.
| Component | Function | Location | Material |
|---|---|---|---|
| Flyweights | Sense engine speed changes through centrifugal force. | Rotating within the governor assembly. | Typically cast iron, steel, or aluminum alloys. |
| Pivot arms | Transmit the movement of flyweights to the control mechanism. | Connecting the flyweights to the governor assembly. | Steel or other strong, lightweight metals. |
| Control spring | Provides restoring force to return the governor to its initial position. | Mounted on the governor assembly, often around the pivot arms. | Spring steel, often with a high tensile strength. |
| Control lever | Adjusts the fuel supply to the engine based on governor position. | Connected to the control spring and fuel supply mechanism. | Steel or aluminum. |
Governor Types and Applications
Different types of governors cater to various engine requirements. Their choice depends on the specific application and the desired speed control characteristics.
| Governor Type | Description | Applications |
|---|---|---|
| Centrifugal Governor | Regulates engine speed by sensing the centrifugal force of rotating flyweights. | Widely used in various small engines, including lawnmowers, chainsaws, and small generators, where a stable speed is essential. |
| Inertia Governor | Utilizes the inertia of moving components to sense speed changes. | Often found in applications requiring very precise speed control, such as some high-performance engines or specialized industrial equipment. |
| Hydraulic Governor | Employs hydraulic pressure to control the engine speed. | Suitable for large engines or applications requiring more sophisticated speed regulation. |
| Electronic Governor | Uses electronic sensors and actuators to precisely control engine speed. | Common in modern engines, offering fine-tuned control and diagnostic capabilities. |
Governor Operation Mechanisms: How Does A Governor Work On A Small Engine
Governors, crucial components in small engine control systems, automatically adjust the fuel supply to maintain a consistent engine speed despite varying loads. Understanding their operation mechanisms is vital for comprehending how these engines respond to changes in demand. This section delves into the principles behind centrifugal governor operation, the influence of speed changes, the workings of spring-loaded governors, the governor-throttle interaction, and diverse control methods.
Comparative analysis of response times will also be presented.
Centrifugal Governor Principles
Centrifugal governors regulate engine speed by utilizing the principle of centrifugal force. As the engine speed increases, the centrifugal force acting on the governor weights increases proportionally. This increased force causes the governor weights to move outward, pushing against a linkage system. This linkage system, in turn, is connected to the throttle, adjusting the fuel supply to the engine.
Conversely, a decrease in engine speed reduces the centrifugal force, allowing the governor weights to return to their original position, thereby increasing the fuel supply. This continuous feedback loop maintains a stable engine speed.
Influence of Engine Speed on Governor Operation
Changes in engine speed directly impact the governor’s operation. An increase in engine speed results in a higher centrifugal force on the governor weights, leading to an outward movement. This movement closes the throttle, reducing the fuel flow and subsequently decreasing the engine speed. Conversely, a decrease in engine speed reduces the centrifugal force, allowing the governor weights to return to their original position.
This action opens the throttle, increasing the fuel flow and raising the engine speed. This dynamic interaction maintains the engine speed within a pre-defined range.
Spring-Loaded Governor Mechanism
Spring-loaded governors employ a spring mechanism to provide a controlled and consistent restoring force. This force counteracts the centrifugal force, ensuring a precise adjustment of the throttle. The spring’s tension is calibrated to provide the optimal restoring force. This arrangement ensures a smooth transition between speed adjustments and prevents overcompensation in response to fluctuations. This mechanism often results in more stable speed regulation compared to purely centrifugal governors.
Governor-Throttle Interaction
The governor and throttle work in tandem to maintain engine speed. The governor’s linkage system is directly connected to the throttle. As the governor weights move, they actuate the throttle, regulating the flow of fuel to the engine. This coordinated action precisely controls the fuel-air mixture, ensuring that the engine operates at the desired speed. The governor constantly monitors and adjusts the throttle position to maintain the set speed, compensating for varying loads.
Governor Control Methods
Various governor control methods are employed depending on the specific application and engine requirements. These include:
- Mechanical governors: These utilize linkages and levers for speed control, providing a simple and reliable mechanism. They are commonly found in small engines due to their robustness and ease of maintenance.
- Hydraulic governors: These use hydraulic pressure to control the throttle, offering a smooth and responsive speed regulation. They are often used in larger engines where precise speed control is critical.
- Electronic governors: These employ electronic sensors and actuators to monitor and control the engine speed. They offer advanced features like automatic adjustments for different operating conditions, providing a higher degree of accuracy and efficiency.
Governor Response Time Comparison
The response time of a governor is crucial for maintaining stable engine speed during load changes. Different governor types exhibit varying response times, affecting the engine’s ability to adapt to fluctuations.
| Governor Type | Typical Response Time (seconds) | Advantages | Disadvantages |
|---|---|---|---|
| Mechanical | 0.5-2 | Simple design, reliable, low cost | Lower responsiveness, less precise |
| Hydraulic | 0.2-1 | Smooth response, high precision | More complex design, higher cost, potentially less robust |
| Electronic | 0.05-0.5 | High responsiveness, precise control, adaptable | More complex design, higher cost, reliance on electronics |
Note: Response times are approximate and can vary based on specific design and implementation.
Governor Types and Applications
Source: marineinsight.com
Governors play a crucial role in maintaining a consistent engine speed, regardless of load variations. Different types of governors employ varying mechanisms to achieve this, each with its own set of advantages and disadvantages. Understanding these distinctions is essential for selecting the appropriate governor for a specific small engine application.
Centrifugal Governors
Centrifugal governors utilize the inertia of rotating weights to regulate engine speed. As the engine speed increases, the centrifugal force acting on these weights increases, pushing them outward. This outward movement activates a mechanism that reduces the fuel supply, thus slowing the engine down. Conversely, a decrease in engine speed reduces the centrifugal force, allowing the fuel supply to increase, accelerating the engine.
This principle provides a straightforward and reliable method for maintaining speed consistency. Centrifugal governors are particularly well-suited for applications where precise speed control is essential.
Spring-Loaded Governors
Spring-loaded governors, in contrast, rely on the restoring force of springs to control engine speed. A spring opposes the movement of a control element, and the tension in the spring is adjusted to regulate the fuel supply. Changes in engine speed affect the load on the control element, which in turn modifies the fuel flow. The advantages of this design include its ability to maintain a stable speed under varying loads and its relatively simple construction.
Other Governor Types
Beyond centrifugal and spring-loaded governors, other designs, though less common in small engines, exist. These include hydraulic governors, which use fluid pressure to control the fuel flow, and electronic governors, which leverage electronic sensors and actuators for highly precise speed regulation. Electronic governors are often found in more sophisticated small engines, such as those used in power equipment or high-performance models.
These types are often more complex and costly to manufacture, and their precision often justifies the additional cost in critical applications.
Governor Design Considerations
Design considerations for governors vary significantly across different engine types. For example, small, high-speed engines often benefit from centrifugal governors due to their responsiveness to rapid changes in speed. Engines used in applications requiring consistent torque output, such as generators, may be better suited to spring-loaded governors. The size and weight of the engine components, the expected operating range, and the desired level of speed stability all play crucial roles in the governor selection process.
The precise nature of the engine’s application is a key factor.
Applications for Different Governor Types
Centrifugal governors are commonly found in small engines like lawnmowers and chainsaws. Their relatively simple design and responsiveness to rapid changes in speed make them ideal for these applications. Spring-loaded governors are more frequently used in engines where consistent torque output is required, such as in some generator models and small pumps. Electronic governors, on the other hand, are becoming increasingly prevalent in engines that demand very precise speed control and sophisticated load management.
Factors Influencing Governor Selection
Several factors influence the choice of a particular governor for a specific engine. These include the desired operating speed range, the expected load variations, the engine’s size and type, and the desired level of speed stability. The cost of the governor is also a consideration, especially for high-volume applications. Engines with highly variable load demands, like those used in reciprocating saws, may require a governor that can quickly adjust the fuel supply to maintain speed under changing conditions.
Governor Type Comparison Table
| Governor Type | Engine Type | Advantages | Disadvantages |
|---|---|---|---|
| Centrifugal | Lawn mowers, chainsaws, small engines with variable loads | Simple design, responsive to speed changes, relatively inexpensive | Less accurate speed control, less effective under constant load |
| Spring-loaded | Generators, pumps, engines requiring consistent torque | Stable speed under varying loads, accurate speed control | Less responsive to rapid speed changes, potentially more complex |
| Electronic | High-performance engines, engines in power equipment, high-precision applications | Extremely precise speed control, sophisticated load management | More complex, more expensive, requires specialized maintenance |
Governor Effects on Engine Performance
Governors are critical components in small engines, ensuring stable operation across varying loads. Their primary function is to maintain a relatively constant engine speed despite fluctuations in the load they are subjected to. This control over speed is fundamental to the reliable and efficient operation of the engine. Understanding how governors affect engine performance is essential for optimizing efficiency, maintaining stability, and preventing damage.Governor operation directly impacts engine power output, load response, and ultimately, fuel efficiency.
The governor’s ability to modulate the engine’s speed in response to changing demands dictates how the engine performs under different circumstances. Malfunctions in the governor can lead to severe performance issues, from inefficient operation to catastrophic engine failure. Analyzing the intricate relationship between governor settings and engine performance is crucial for optimal engine management.
Impact on Engine Power Output
The governor’s influence on power output is a direct result of its control over the engine speed. A governor designed to maintain a specific engine speed under varying loads will naturally affect the power output. At higher speeds, the engine can deliver more power, while lower speeds result in reduced power. This relationship is fundamental to the governor’s role in optimizing engine performance for specific tasks.
For instance, a lawnmower engine running at a higher speed to cut thick grass will deliver more power compared to mowing short grass.
Governor Settings and Load Response
Governor settings directly influence how the engine reacts to load changes. Different settings dictate the governor’s sensitivity to these changes. A more sensitive governor will quickly adjust the engine speed to maintain the target speed, while a less sensitive one might allow the engine speed to fluctuate more significantly before adjusting. This sensitivity is crucial for applications requiring consistent power delivery.
For example, in a generator, a governor with rapid response ensures consistent power output during varying loads.
Relationship Between Governor Response and Engine Stability
The speed at which the governor responds to load changes directly correlates to the engine’s stability. A slow governor response can cause the engine to fluctuate significantly, leading to instability and potentially damage. Conversely, a fast governor response minimizes these fluctuations, ensuring smooth and stable operation under different loads. The stability of the engine, therefore, is intrinsically linked to the governor’s ability to maintain consistent engine speed.
Governor Optimization of Fuel Efficiency, How does a governor work on a small engine
Governors play a significant role in optimizing fuel efficiency. By maintaining a precise engine speed appropriate for the load, governors prevent the engine from operating at higher speeds than necessary, which would consume more fuel. For instance, a generator running at a higher speed than needed will consume more fuel. The governor’s ability to maintain the optimal speed for the load directly contributes to fuel efficiency.
Governor Malfunctions and Engine Performance
Governor malfunctions can have a severe impact on engine performance. A malfunctioning governor might fail to maintain the target speed, leading to either excessive speed fluctuations or a complete loss of control. This can lead to reduced efficiency, damaged components, and ultimately, engine failure. For example, a malfunctioning governor in a small engine used for irrigation might lead to uneven water pressure, which can harm the system or the crops.
Governor-Load Relationships
| Governor Setting | Engine Load | Engine Speed |
|---|---|---|
| Low | Light | High |
| Low | Medium | Medium |
| Low | Heavy | Low |
| Medium | Light | Medium |
| Medium | Medium | Medium |
| Medium | Heavy | Low |
| High | Light | High |
| High | Medium | Medium |
| High | Heavy | High |
This table illustrates the relationship between governor settings and engine speed under different load conditions. Notice how different settings can affect the engine speed’s response to the load.
Governor Illustrations and Diagrams
Source: engineeringlearner.com
Governor illustrations and diagrams are crucial for understanding the intricate workings of a centrifugal governor. These visual aids, ranging from simple sketches to detailed schematics, provide a clear picture of the governor’s components, their interactions, and how they respond to changes in engine speed. This section delves into various representations, highlighting the essential elements and their functionality within the governor mechanism.

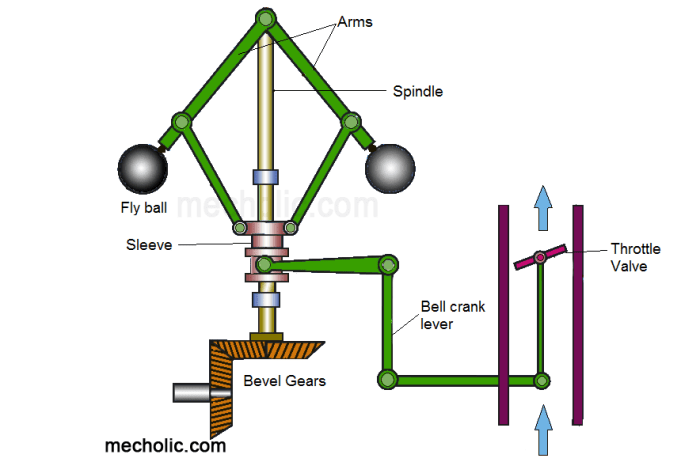

Centrifugal Governor Diagram
A centrifugal governor employs a set of flyweights that rotate with the engine shaft. Their outward movement due to centrifugal force regulates the throttle position, thereby controlling the engine speed. The diagram below illustrates the fundamental components of a typical centrifugal governor.
(Placeholder for a centrifugal governor diagram. Imagine a simple design with two flyweights connected to a shaft. The shaft is connected to a linkage that controls the throttle. A spring is also present to maintain a fixed position in the absence of centrifugal force.)
Governor-Throttle Interaction Schematic
This schematic illustrates the mechanical linkage connecting the governor to the throttle. The governor’s movement, driven by the engine’s speed, directly influences the throttle’s position. This is crucial for maintaining a stable engine speed.
(Placeholder for a governor-throttle interaction schematic. Imagine a diagram showing a mechanical lever system connecting the governor’s shaft to the throttle. The lever system amplifies the governor’s movement, translating it into a change in the throttle’s opening.)
Governor Component Movement at Varying Engine Speeds
The governor’s components respond dynamically to changes in engine speed. At higher speeds, the centrifugal force on the flyweights increases, pushing them outwards. Conversely, at lower speeds, the flyweights move inwards. These movements translate into corresponding adjustments to the throttle position, regulating the engine’s fuel supply and maintaining a consistent speed.
(Placeholder for a diagram showing different positions of the flyweights at various engine speeds. Imagine arrows indicating the outward movement of the flyweights at high speeds and inward movement at low speeds. The throttle position should be correspondingly shown in the diagram.)
Internal Components of a Governor
The internal components of a governor are essential for its function. They include the flyweights, springs, linkage, and a throttle.
(Placeholder for an image showing the internal parts of a governor. This should include the flyweights, springs (likely coiled springs for restoring position), the shaft connecting them to the engine, and the linkage connecting the governor to the throttle mechanism.)
Detailed Description of Components
The following table provides a detailed description of the components present in the internal governor illustration.
| Part Name | Description |
|---|---|
| Flyweights | These are the rotating masses that move outward due to centrifugal force, controlling the governor’s action. |
| Springs | These springs maintain the position of the flyweights in the absence of centrifugal force. They are responsible for returning the governor to its idle position when the engine slows down. |
| Shaft | The shaft connects the flyweights to the engine’s output shaft, transmitting the rotational motion to the governor. |
| Linkage | This system of levers and connecting rods translates the flyweights’ movement into a change in the throttle position. |
| Throttle | The throttle regulates the amount of air-fuel mixture entering the engine. Its position is controlled by the governor. |
Conclusive Thoughts
Source: instructables.com
In conclusion, mastering the operation of a small engine governor empowers you to maximize performance, optimize fuel efficiency, and ensure the long-term health of your engine. This guide has provided a thorough understanding of the underlying principles, mechanisms, and maintenance procedures. By grasping the concepts discussed, you are equipped to confidently address any governor-related issues and maintain optimal engine performance.
FAQ Resource
What are the common causes of a governor malfunction?
Governor malfunctions can stem from various issues, including worn or broken springs, damaged linkages, faulty sensors, or a clogged fuel system, leading to erratic engine speed.
How can I identify wear and tear on governor components?
Visual inspection for signs of wear, such as bent or broken components, loose connections, and excessive play in linkages, can help in early detection.
What are the different types of governors, and what are their applications?
Centrifugal governors are commonly used in applications where stable speed is critical, while spring-loaded governors often find use in engines with fluctuating loads.
How do governor settings affect fuel efficiency?
Proper governor settings can significantly improve fuel efficiency by maintaining optimal engine speed under varying load conditions, thereby minimizing unnecessary fuel consumption.
