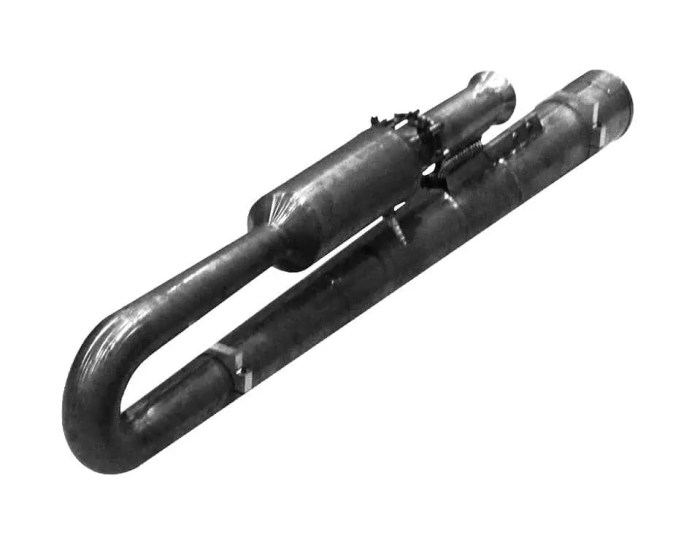

Pulse Jet Engine Operation A Deep Dive

How does pulse jet engine work? This engine, a unique form of jet propulsion, utilizes a pulsating combustion process to generate thrust. Its historical significance lies in its simplicity, yet its operational mechanics are surprisingly intricate, involving precise timing and pressure variations within the combustion chamber. Understanding its operating cycle, components, and limitations provides insight into its capabilities and constraints compared to other jet engine types.

The engine’s design, fueled by specific chemical reactions, has evolved over time, adapting to changing requirements. This document delves into the detailed workings of a pulse jet engine, examining its operating principles and highlighting crucial factors affecting its performance.

Operating Cycle: How Does Pulse Jet Engine Work

The pulse jet engine’s unique operating cycle distinguishes it from other jet propulsion systems. Understanding this cycle is crucial for appreciating its mechanics and limitations. It relies on rapid pressure waves and controlled explosions to generate thrust.The cycle is characterized by a series of carefully orchestrated steps, each contributing to the engine’s overall function. These steps, from intake to exhaust, are repeated continuously to maintain thrust.

Specific Steps in a Single Cycle

The pulse jet engine’s cycle involves a series of precisely timed events, creating a pulsating thrust output. These steps are critical for efficient operation and must occur in the correct sequence.

• Intake Phase: A pressure difference between the intake and the combustion chamber draws in air. This occurs as the pressure within the combustion chamber drops below atmospheric pressure.
• Combustion Phase: Fuel is injected into the combustion chamber, mixed with the ingested air, and ignited. This process generates a rapid increase in pressure and temperature within the chamber.
• Expansion Phase: The high-pressure gases expand, pushing against the chamber walls. This expansion creates a thrust force.
• Exhaust Phase: The pressure within the combustion chamber drops as the gases are expelled through the exhaust nozzle. This creates a pressure difference that facilitates the intake of fresh air for the next cycle.

Intake and Exhaust Valve Synchronization

The proper synchronization of intake and exhaust valves is critical for the engine’s functionality. Their coordinated opening and closing is essential for a smooth operation. This precise timing dictates the direction of air and gas flow.

• Intake Valve Operation: The intake valve opens in response to the pressure drop within the combustion chamber. This ensures that fresh air is drawn into the chamber, providing the necessary oxygen for combustion.
• Exhaust Valve Operation: The exhaust valve opens as the pressure within the combustion chamber rises. This allows the high-pressure gases to escape, creating thrust and maintaining a pressure difference to support the next intake.

Combustion Initiation and Propagation

Ignition and combustion propagation are critical elements in the pulse jet engine’s operation. Proper initiation and controlled propagation are vital for consistent thrust generation.

• Ignition: Ignition is usually achieved using a spark plug or a pilot flame, igniting the fuel-air mixture. The process must occur at the correct time for efficient combustion.
• Propagation: The flame front rapidly spreads throughout the combustion chamber, converting the fuel-air mixture into hot gases. This rapid combustion is crucial for the pulsating nature of the engine.

Pressure Variations in the Combustion Chamber

The pressure within the combustion chamber fluctuates significantly during a single cycle. These pressure variations directly influence the engine’s performance.

Time (Relative to Cycle)	Pressure (Relative to Atmospheric Pressure)	Description
Intake	Sub-atmospheric	Pressure is below atmospheric pressure, drawing air into the chamber.
Combustion	High	Fuel ignites, generating a rapid increase in pressure.
Expansion	Decreasing	High-pressure gases expand, pushing against the chamber walls.
Exhaust	Sub-atmospheric	Pressure drops as gases are expelled, preparing for the next intake.

Comparison with Other Jet Engines

The pulse jet engine differs significantly from other jet engines in its operating cycle. This difference impacts its applications and performance characteristics.

• Ramjet Engines: Ramjet engines rely on the forward motion of the aircraft to compress the incoming air. Pulse jets, in contrast, rely on the pressure difference generated by the combustion process itself.
• Turbofan Engines: Turbofan engines use a turbine to power a compressor, which compresses the air before combustion. Pulse jets lack this intermediate compression stage.
• Rocket Engines: Rocket engines carry their own oxidizer, unlike pulse jets, which rely on atmospheric oxygen.

Components and Functions

The pulse jet engine, a relatively simple yet powerful propulsion system, relies on a carefully orchestrated sequence of events within its key components. Understanding these components and their functions is crucial for comprehending the engine’s operating cycle and performance characteristics. This section delves into the roles of each part, highlighting their contribution to the engine’s overall operation.

Intake Valve and Function

The intake valve plays a critical role in controlling the entry of air into the combustion chamber. Its design and timing are essential for ensuring an efficient and controlled air intake process. The intake valve’s primary function is to open and close precisely at the right moment to allow the necessary amount of air to enter the combustion chamber, and to prevent backflow of gases.

This precise control is critical for the engine’s efficient operation.

Exhaust Valve and Function

The exhaust valve is the counterpart to the intake valve, responsible for regulating the expulsion of burned gases. The exhaust valve’s timed opening and closing are crucial to maintaining a controlled and efficient exhaust process. Its design, like that of the intake valve, is engineered to permit the rapid and complete expulsion of spent gases while minimizing backflow and pressure loss.

The timing of the exhaust valve directly influences the engine’s power output.

Combustion Chamber and Function

The combustion chamber is the heart of the pulse jet engine. It is where the fuel and air mixture is ignited, generating the thrust that propels the engine. The design of the combustion chamber significantly impacts the engine’s performance. Its shape and dimensions affect the efficiency of combustion, the rate of pressure buildup, and the overall power output.

The chamber’s design must accommodate the high temperatures and pressures generated during combustion without compromising structural integrity.

Igniter and Function

The igniter is a crucial component for initiating the combustion process. It provides the initial spark or heat needed to ignite the fuel-air mixture within the combustion chamber. This ignition process is critical for the engine’s operation. Igniters typically consist of a heating element, such as a spark plug or a hot wire, that generates the necessary energy to initiate the combustion process.

The igniter must be reliably positioned and function with precise timing to ensure proper ignition.

Air Intake and Function

The air intake system is responsible for drawing in the necessary air for combustion. Its design and placement influence the engine’s performance. The air intake system is typically simple, consisting of a duct or opening that draws air from the surrounding environment. This system’s efficiency significantly impacts the engine’s ability to intake sufficient air for combustion. An efficient air intake design will draw in air with minimal resistance, optimizing the fuel-air mixture and enhancing the engine’s performance.

Components and Functions Table

Component	Function	Description
Intake Valve	Controls air intake	Opens and closes to allow air into the combustion chamber.
Exhaust Valve	Regulates exhaust	Opens and closes to expel burned gases.
Combustion Chamber	Site of combustion	Houses the fuel-air mixture and igniter for combustion.
Igniter	Initiates combustion	Provides spark or heat to ignite the fuel-air mixture.
Air Intake	Supplies air	Draws in air for combustion.

Fuel and Combustion

Pulsejet engines rely on a controlled combustion process for propulsion. The efficiency and performance of these engines are directly linked to the careful selection and management of the fuel and the combustion process itself. Proper fuel injection and mixing with air, along with effective ignition, are critical for generating the necessary thrust. Factors affecting combustion efficiency, such as the fuel type, chamber design, and ignition timing, all play crucial roles in optimizing engine operation.The successful operation of a pulse jet engine hinges on the precise interaction between the fuel, air, and the engine’s components.

Understanding the intricacies of fuel injection, combustion, and ignition mechanisms is key to maximizing the engine’s performance and efficiency. The type of fuel used directly impacts the combustion process, and the design of the combustion chamber significantly affects the efficiency of fuel burning.

Suitable Fuels

A variety of fuels can be used in pulse jet engines, depending on factors like availability, cost, and environmental impact. Common choices include kerosene, gasoline, and various types of alcohol. The selection process often involves evaluating the fuel’s ignition characteristics, energy density, and emissions profile. Kerosene, due to its high energy density and relative stability, remains a popular choice.

Fuel Injection and Mixing, How does pulse jet engine work

Fuel injection in pulse jet engines is often a relatively simple process, typically involving a fuel pump and injector system. The injector is crucial in ensuring precise fuel delivery into the combustion chamber. The air intake system, working in conjunction with the fuel injection system, ensures a proper mixture of fuel and air. This precise mixture is fundamental to achieving efficient combustion.

Combustion Process

The combustion process within the pulse jet engine is characterized by rapid and cyclical pressure changes. Fuel-air mixture ignites, producing hot gases that expand rapidly. The resulting pressure wave propels the engine. The chemical reactions involved in combustion are complex, but a simplified representation is:

Fuel + Oxidizer (Air) → Products of Combustion + Heat

These products of combustion, primarily carbon dioxide and water vapor, along with other trace gases, are expelled from the engine.

Factors Affecting Combustion Efficiency

Several factors can influence the efficiency of combustion in pulse jet engines. The design of the combustion chamber, including its shape and volume, significantly impacts mixing and combustion. Fuel-air ratio is crucial, and any imbalance can lead to incomplete combustion or excessive emissions. Temperature and pressure within the combustion chamber also play critical roles. Engine design parameters like chamber dimensions, the location and timing of fuel injection, and the igniter design directly affect combustion efficiency.

Igniter

The igniter plays a crucial role in initiating the combustion process. It provides the initial spark or heat needed to ignite the fuel-air mixture. Typical igniters use an electric spark, a hot filament, or a small flame. The design of the igniter, including its location and firing frequency, significantly affects combustion efficiency and engine performance. The igniter’s placement, in relation to the fuel injection point, directly impacts the timing and speed of ignition, influencing the overall combustion process.

Applications and Limitations

Pulse jet engines, despite their unique operating principle, have found niche applications, particularly in specific scenarios where their characteristics offer advantages over other engine types. However, inherent limitations restrict their widespread adoption in favor of more versatile and efficient designs. Understanding these applications and constraints is crucial for evaluating their suitability in various contexts.

Applications

Pulse jet engines exhibit advantages in certain specialized applications where their simplicity and relatively low manufacturing cost are critical. They excel in situations demanding portability, quick deployment, and limited maintenance requirements.

• Military Applications: Small, unmanned aerial vehicles (UAVs) and rockets have historically employed pulse jet engines for their ability to rapidly accelerate and maneuver in certain tactical scenarios. The compact design of pulse jets makes them suitable for small-scale, low-payload missions. Their simplicity also makes them easier to maintain in austere environments.
• Specialized Aerospace Applications: Pulse jet engines are sometimes utilized in niche aerospace applications like experimental aircraft designs. Their relative simplicity, while not necessarily high efficiency, can be appealing for prototype development and experimentation.
• Other Applications: Limited applications exist outside of aerospace, such as for specialized research projects and testing. However, these are relatively uncommon.

Preferred Situations

Pulse jet engines are preferred over other engine types in specific situations.

• Limited Power Requirements: For applications needing moderate thrust, the lower complexity and cost of pulse jets can make them a suitable choice. This is particularly true for unmanned vehicles or experimental prototypes where high efficiency is less critical.
• Portability and Simplicity: The compact design and relatively straightforward construction of pulse jet engines contribute to their portability and ease of maintenance. This can be beneficial in remote or hostile environments.

Limitations

Pulse jet engines suffer from several significant drawbacks that limit their widespread use.

• Low Efficiency: Pulse jet engines are notoriously inefficient, with significant energy loss during the combustion and expansion processes. This results in poor fuel economy compared to other engine designs.
• High Vibration and Noise: The pulsating nature of pulse jet operation leads to substantial vibrations and noise pollution. This can be a major issue in applications requiring quiet operation or where vibration resistance is critical.
• Complexity of Maintenance: Although the design is relatively simple, maintaining the engine and addressing issues with the pulse combustion chamber can be complex, potentially requiring specialized tools or expertise.
• Inadequate Thrust to Weight Ratio: The thrust generated by pulse jet engines, relative to their weight, is often insufficient for high-speed flight or large-scale applications.

Reasons for Limited Use

Pulse jet engines have not become commonplace due to the significant trade-offs between their advantages and disadvantages.

• High Fuel Consumption: The inefficiency of pulse jets results in significantly higher fuel consumption compared to more advanced jet engine designs.
• Significant Vibration and Noise Pollution: The inherent pulsing nature of the engine results in considerable vibration and noise levels, often exceeding acceptable thresholds for many applications.
• Poor Performance at Higher Speeds: Pulse jet engines struggle to maintain efficient operation at higher speeds, further limiting their applicability.

Comparison Table

Feature	Pulse Jet Engine	Turbofan Engine	Ramjet Engine
Efficiency	Low	High	Moderate
Complexity	Low	High	Moderate
Cost	Low	High	Moderate
Noise	High	Low	Moderate
Vibration	High	Low	Moderate
Thrust-to-Weight Ratio	Low	High	Moderate

Performance Characteristics

Pulse jet engines, despite their simplicity, exhibit unique performance characteristics. Their effectiveness hinges on efficient combustion and the controlled expansion of hot gases. Understanding these characteristics is crucial for optimizing design and application.

Performance Metrics

Pulse jet engines are evaluated based on several key performance metrics. Thrust, a measure of the engine’s propulsive force, is paramount. Specific impulse, representing the thrust generated per unit of fuel consumed, is another crucial indicator of efficiency. Higher specific impulse signifies greater fuel economy. Other important metrics include the engine’s efficiency, which considers the ratio of thrust produced to fuel consumed, and its overall power output.

Factors Influencing Performance

Several factors significantly impact the performance of pulse jet engines. The design of the combustion chamber, including its volume and shape, directly influences the efficiency of the combustion process and the resulting thrust. The characteristics of the incoming air, such as its density and velocity, also play a role in determining the engine’s performance. The design of the intake and exhaust systems are crucial in directing the flow of air and expelling exhaust gases effectively.

Furthermore, the type and properties of the fuel used are pivotal. The fuel’s energy density and combustion characteristics significantly affect the engine’s output.

Variables Affecting Engine Efficiency

Several variables influence the overall efficiency of a pulse jet engine. The engine’s operating pressure and temperature directly impact the combustion process and the expansion of gases, thus affecting its efficiency. The design of the engine components, such as the combustion chamber, intake, and exhaust systems, also plays a role in determining efficiency. Optimization of these components and parameters allows for increased efficiency.

Moreover, the operating frequency and cycle time significantly impact the engine’s ability to generate thrust and its overall efficiency.

Effects of Varying Fuel Types on Performance

The choice of fuel significantly impacts the performance of a pulse jet engine. Different fuels exhibit varying energy densities and combustion characteristics. For example, higher energy density fuels will lead to greater thrust output for the same fuel consumption. However, fuels with different combustion properties may require adjustments in the engine’s design to ensure smooth and efficient combustion.

The type of fuel also impacts the emission profile of the engine, which is a critical factor in environmental considerations.

Pulse Jet Engine Configurations and Performance Metrics

Configuration	Thrust (lbs)	Specific Impulse (sec)	Efficiency (%)
Simple Pulse Jet	50-150	50-100	20-40
Advanced Pulse Jet (with optimized combustion chamber)	150-300	100-150	30-50
Pulse Jet with Variable Geometry	200-400	120-200	40-60

Note: The values provided in the table are approximate and can vary significantly based on specific design parameters, operating conditions, and fuel type.

Maintenance and Troubleshooting

Pulse jet engines, while offering a unique propulsion method, require meticulous maintenance to ensure optimal performance and longevity. Proper maintenance procedures and prompt troubleshooting are crucial for preventing costly repairs and maintaining safety. Failure to address issues early can lead to significant performance degradation, potential engine damage, and even hazardous situations.A comprehensive maintenance program, encompassing regular inspections, component replacements, and adherence to manufacturer guidelines, is vital.

This approach minimizes the risk of unforeseen failures and maximizes the engine’s operational lifespan. Understanding common issues and implementing effective troubleshooting techniques is essential for efficient maintenance.

Typical Maintenance Procedures

Routine maintenance is key to preventing major issues. Regular inspections of critical components, including the combustion chamber, intake and exhaust valves, and fuel system, are essential. This involves visual checks for damage, wear, and leaks. Cleaning and lubrication of moving parts, such as the valve mechanisms, are crucial for smooth operation. Maintaining accurate records of maintenance activities, including dates, procedures, and findings, is essential for future reference and for tracking the engine’s health.

Specific maintenance schedules should be adhered to as Artikeld by the manufacturer’s recommendations.

Common Issues and Causes

Several issues can arise in a pulse jet engine, often stemming from operational factors, material degradation, or component wear. Poor fuel quality, inadequate air intake, and improper valve timing can contribute to combustion problems. Material fatigue in the engine’s components, especially in the combustion chamber, can lead to cracking or failure. Excessive vibration, often a result of misalignment or imbalances, can lead to structural damage and component failure.

Ignoring early warning signs, such as unusual noises or vibrations, can exacerbate problems and lead to more extensive repairs.

Troubleshooting Guides for Specific Problems

Troubleshooting pulse jet engine problems requires a systematic approach. A detailed understanding of the engine’s operating principles and component functions is crucial.

Problem: Engine Won’t Start

• Verify fuel supply and pressure.
• Check air intake for blockages or restrictions.
• Inspect the spark plug (if applicable) for proper function.
• Ensure proper valve timing and operation.
• Inspect the combustion chamber for damage or obstructions.
• If the problem persists, consult the manufacturer’s troubleshooting guide.

Problem: Excessive Vibration

• Inspect engine mounts and securing hardware for tightness and integrity.
• Assess component balance and alignment.
• Check for any loose or damaged components within the engine.
• Verify that the fuel supply is stable and not causing any fluctuations.
• Ensure the engine is operating within its specified operating parameters.
• If the problem persists, consult the manufacturer’s troubleshooting guide.

Inspecting Intake and Exhaust Valves

Regular inspection of intake and exhaust valves is vital for maintaining engine performance.

• Visual inspection for signs of damage, such as warping, cracks, or excessive wear. Examine the valve seats for proper sealing and the valve springs for adequate tension.
• Checking for proper valve clearances and operation. Ensure smooth and unobstructed operation of the valve mechanism. Any unusual noises or resistance during operation may indicate issues that require immediate attention.
• Clean any debris or deposits that may be present on the valve surfaces. A thorough cleaning of the valves ensures proper functionality and longevity.
• Verify that the valves are properly aligned and secured in their respective housings. Misalignment or loose valves can lead to operational problems and potential damage.

Ending Remarks

In conclusion, the pulse jet engine, despite its limitations, remains a fascinating example of jet propulsion. Its cyclical nature, reliant on precisely timed pressure variations, sets it apart from other jet engine types. While not as efficient or versatile as more modern designs, its simplicity and potential in specific applications make it a noteworthy topic for study. Understanding its operating cycle, component functions, and limitations is crucial to appreciating its unique characteristics.

Question Bank

What are the typical maintenance procedures for a pulse jet engine?

Regular inspections of intake and exhaust valves, meticulous cleaning of the combustion chamber, and careful monitoring of fuel lines are crucial. Detailed maintenance schedules should be followed to prevent potential issues.

What are the limitations of pulse jet engines compared to other jet engines?

Pulse jet engines generally exhibit lower efficiency and thrust-to-weight ratios compared to turbine-based engines. They are also more prone to vibrations and noise pollution.

What factors influence the performance of pulse jet engines?

Several factors affect performance, including fuel type, combustion efficiency, and the precise timing of the intake and exhaust valves. Variations in these parameters directly impact thrust and specific impulse.

What are the specific situations where pulse jet engines are preferred over other engine types?

Pulse jet engines might be advantageous in certain applications, such as small-scale unmanned aerial vehicles or specialized niche applications where efficiency is less critical and simplicity of design is prioritized.
