Definition and Purpose
The engine block is the heart of any internal combustion engine. It’s the foundational component that houses the engine’s moving parts, providing a rigid structure for everything to work together harmoniously. Imagine a sturdy, well-designed container, perfectly shaped to hold and support all the intricate machinery within. This container is the engine block.Engine blocks are meticulously crafted to withstand the immense pressures and temperatures generated during operation.
Their robust design ensures a long lifespan and reliable performance. A well-made engine block is the bedrock of a dependable vehicle.
Fundamental Definition
An engine block is a large, robust casting, typically made from metal alloys, that forms the primary structural component of an internal combustion engine. It houses the cylinders, crankshaft, and other critical engine components. The engine block provides a rigid framework that ensures precise alignment and smooth operation of all these parts.
Purpose in Internal Combustion Engines
The fundamental purpose of an engine block is to provide a stable and strong base for all the essential parts of the engine. It acts as a container, rigidly holding the cylinders, crankshaft, and other crucial components. This rigid structure is essential for the smooth and efficient functioning of the internal combustion engine. This includes withstanding the pressures and vibrations generated during operation.
Key Functions
The engine block performs several critical functions. These functions are integral to the engine’s ability to convert fuel into motion.
- Cylinder Housing: The engine block houses the cylinders where the combustion process takes place. This precise housing ensures proper alignment and sealing for efficient combustion. Cylinders are bored out precisely to accommodate pistons, ensuring smooth piston movement and minimal friction.
- Crankshaft Support: The engine block supports the crankshaft, the crucial component that converts the reciprocating motion of the pistons into rotational power. The engine block provides a robust mounting for the crankshaft bearings, ensuring smooth and stable rotation. This is crucial for the engine’s overall power output.
- Water Jacket/Oil Passageways: Many engine blocks incorporate water jackets or oil passages. These channels facilitate the circulation of coolant or lubricating oil, ensuring proper temperature control and lubrication of critical engine components. The design of these channels is crucial for effective heat transfer and lubrication.
- Mounting Points: The engine block often includes mounting points for other engine components like the valve train, connecting rods, and various accessories. These mounting points need to be precisely engineered to ensure stable support and prevent damage during operation.
Materials Used in Construction
Engine blocks are typically constructed from durable and heat-resistant metal alloys. The choice of material directly affects the engine’s performance and lifespan.
- Cast Iron: Cast iron is a common material for engine blocks due to its high strength and excellent ability to withstand high temperatures and pressures. It is relatively inexpensive and has proven reliability in many applications. However, it tends to be heavier than some other materials.
- Aluminum Alloys: Aluminum alloys are increasingly used in engine blocks due to their superior lightweight properties. This leads to better fuel efficiency and improved performance. However, aluminum alloys might be less resistant to extreme temperatures and pressures compared to cast iron.
- Magnesium Alloys: Magnesium alloys are sometimes used for engine blocks in high-performance applications, particularly in racing vehicles. Their extremely low weight is a major advantage, which contributes to better fuel economy and faster acceleration. However, magnesium’s strength is typically lower than that of cast iron or aluminum.
Importance of Material Properties
The material properties of an engine block significantly impact its performance and lifespan. Critical properties include strength, heat resistance, and dimensional stability.
- Strength: The engine block must be strong enough to withstand the immense pressures and vibrations generated during operation. High strength ensures that the engine block doesn’t deform or crack under stress.
- Heat Resistance: The engine block needs to withstand high temperatures generated during combustion. The material must have high heat resistance to prevent warping or cracking. This directly affects the longevity of the engine.
- Dimensional Stability: The engine block must maintain its precise dimensions over time, even under varying temperatures. This is critical for proper sealing and alignment of the engine’s moving parts.
Components and Structure
The engine block, the heart of any internal combustion engine, is a complex assembly of meticulously crafted components. Its robust structure and precise engineering ensure reliable power delivery, enabling vehicles to move with efficiency and precision. Understanding its intricate design is crucial for appreciating the engineering marvels that make modern vehicles possible.
Engine Block Components
The engine block is a meticulously constructed assembly of various components, each playing a vital role in the engine’s operation. These components are chosen for their strength, durability, and resistance to the extreme pressures and temperatures encountered during operation.
| Component Name | Function | Material |
|---|---|---|
| Cylinder Block | Houses the cylinders and provides structural support for the engine. | Cast iron, aluminum alloy |
| Cylinder Liners | Form the inner surface of the cylinders, enhancing wear resistance and providing a precise bore. | Cast iron, steel |
| Crankshaft | Rotates to convert the reciprocating motion of pistons into rotary motion, driving the wheels. | Steel alloy |
| Connecting Rods | Connect the pistons to the crankshaft, transmitting the force generated by the combustion process. | Steel alloy |
| Pistons | Convert the pressure from the combustion process into mechanical force, moving the crankshaft. | Aluminum alloy, steel |
Internal Structure
The internal structure of a typical engine block is a marvel of precision engineering. It comprises a series of cylinders, each housing a piston that moves up and down within it. The cylinders are typically arranged in a specific configuration, such as inline or V-type, influencing the engine’s overall design and performance characteristics.
Cylinder Bore Features
The cylinder bores, the internal spaces within the cylinders, are meticulously machined to exacting tolerances. Their critical features ensure precise piston movement and minimal friction, optimizing the engine’s performance and longevity. Smooth, perfectly round bores minimize friction, reducing wear and tear, and contribute to smoother operation. The precision of the cylinder bores is crucial to maintain compression and prevent leaks.
Water Jackets
The engine block’s water jackets are integral to the cooling system. These channels circulate coolant, absorbing heat generated by combustion and dissipating it into the surrounding environment. This prevents the engine from overheating, ensuring reliable operation.
Oil Passages
Oil passages are strategically positioned throughout the engine block to ensure lubrication of critical components. These passages carry engine oil, providing a protective layer between moving parts, reducing friction and wear, and extending the engine’s lifespan. The careful design of these passages is essential for maintaining optimal lubrication and preventing engine damage.
Engine Block Configurations
Different engine block configurations cater to various vehicle needs and performance requirements. The configuration significantly impacts the engine’s overall dimensions, weight, and performance characteristics.
| Configuration | Description | Illustration |
|---|---|---|
| Inline | Cylinders are arranged in a straight line. This configuration often results in a more compact engine. | Imagine a series of vertically stacked cylinders. |
| V-type | Cylinders are arranged in a “V” shape. This configuration typically results in a wider engine, but often offers better performance and a lower center of gravity. | Visualize two banks of cylinders angled towards each other, forming a “V” shape. |

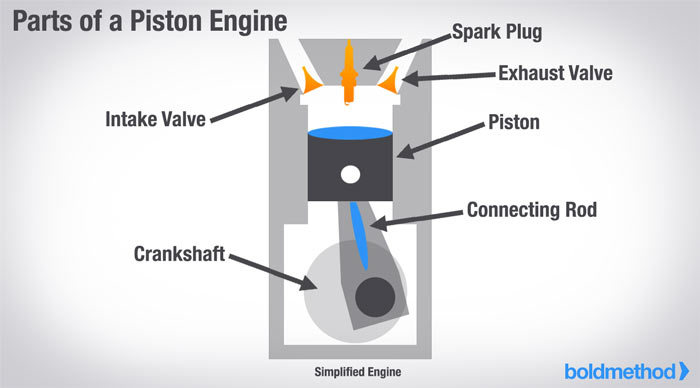

Manufacturing Processes: What Is A Engine Block
Source: boldmethod.com
Engine blocks, the heart of any internal combustion engine, are meticulously crafted through a series of complex manufacturing processes. From the initial molten metal to the finished product, each step plays a crucial role in ensuring the block’s strength, durability, and performance. Understanding these processes is key to appreciating the intricate engineering behind these vital components.
Casting Methods
The creation of an engine block often begins with casting, a process where molten metal is poured into a mold to solidify into the desired shape. This method is commonly used for its ability to produce complex shapes with relative ease and efficiency. Different casting methods exist, each with its own advantages and limitations.
- Sand Casting is a widely used technique. A mold is created from sand, ensuring the block’s intricate features can be replicated. This process is relatively cost-effective, but it can lead to imperfections in the final product, which must be carefully addressed during the machining stage.
- Die Casting, on the other hand, involves forcing molten metal into a precisely shaped die. This method yields highly accurate castings with minimal defects, though the setup cost for the dies can be substantial.
- Investment Casting, also known as the lost-wax process, offers a high level of detail and precision in the final casting. A wax pattern is coated in a ceramic material, creating a mold that is then heated to melt the wax. The resulting ceramic mold is filled with molten metal. This technique is often used for complex designs, but it tends to be more expensive than sand casting.
Casting Process Steps
The casting of an engine block typically follows these steps:
- Pattern Making: A precise replica of the engine block is created, often from wood or metal. This pattern serves as the template for the mold.
- Mold Making: The pattern is used to create a mold cavity, typically from sand or other materials, which will hold the molten metal.
- Core Making: For internal features of the block, cores are created to maintain the desired cavity shape during the casting process. These cores are then placed inside the mold.
- Pouring: Molten metal is carefully poured into the mold cavity, filling the mold with the liquid metal.
- Cooling: The metal cools and solidifies, taking the shape of the mold cavity.
- Removal: The casting is removed from the mold, and any excess material is trimmed off.
Machining Processes
After casting, the engine block undergoes machining, a crucial step to refine the shape and dimensions. Machining involves removing excess material to achieve the precise tolerances and specifications required for proper engine function. Common machining processes include turning, milling, drilling, and grinding. These processes ensure the engine block meets the required standards of accuracy and quality.
Quality Control
Quality control is paramount throughout the entire engine block production process. This involves rigorous inspection at various stages to ensure that the block meets the required specifications. Techniques include dimensional measurements, visual inspections, and non-destructive testing (NDT) methods. NDT techniques such as ultrasonic testing can detect internal flaws and imperfections within the metal. A high degree of accuracy and attention to detail are vital for ensuring the safety and performance of the engine.
Manufacturing Process Summary
| Process | Description | Advantages | Disadvantages |
|---|---|---|---|
| Sand Casting | Molten metal poured into a sand mold | Cost-effective, good for complex shapes | Can lead to imperfections, less precise |
| Die Casting | Molten metal forced into a metal die | High precision, minimal defects | High setup costs |
| Investment Casting | Wax pattern coated in ceramic, then melted | High precision, intricate details | More expensive than sand casting |
| Machining | Removing excess material for final shape and dimensions | Achieves precise tolerances, improves surface finish | Can introduce stresses, requires specialized equipment |
Design Considerations
Source: ebayimg.com
Engine block design is a critical aspect of automotive engineering, directly impacting the performance, durability, and efficiency of the internal combustion engine. Careful consideration of various factors, from material selection to cooling system design, is paramount in achieving a robust and reliable engine block. The design process must balance these often-competing demands to create a high-performing and cost-effective product.
Key Design Factors Influencing Performance
Engine block design is a complex interplay of factors that influence the engine’s overall performance. Factors like cylinder bore diameter, stroke length, and the arrangement of cylinders significantly impact power output, torque, and engine speed. The overall block geometry, including the thickness of the block walls and the dimensions of the cooling passages, greatly affect the engine’s thermal efficiency.
Additionally, the placement of mounting points and the overall weight of the block play a role in engine vibrations and stability.
Impact of Material Selection
The choice of material profoundly influences the engine block’s strength and durability. Cast iron, due to its high strength-to-weight ratio and excellent wear resistance, remains a popular choice for its robustness. However, cast iron’s relatively high density contributes to increased engine weight. Aluminum alloys, conversely, offer a significant weight reduction, leading to improved fuel economy. However, aluminum’s lower strength necessitates careful design considerations to prevent potential failure under stress.
Magnesium alloys are even lighter than aluminum, but they are often more expensive and require specialized manufacturing techniques. The selection process carefully balances the trade-offs between strength, weight, cost, and potential for thermal distortion.
Importance of Cooling System Design
An efficient cooling system is critical for maintaining optimal engine temperature and preventing overheating. The design of the cooling passages within the engine block directly affects the rate of heat transfer from the combustion chambers to the coolant. Effective cooling prevents engine damage and ensures consistent performance. Proper design of the coolant channels minimizes pressure drops, maximizes coolant flow, and prevents localized overheating.
The size and configuration of the cooling passages must balance the need for efficient heat dissipation with the need for compact design.
Impact of Engine Block Design on Fuel Efficiency
Engine block design plays a pivotal role in achieving improved fuel efficiency. A well-designed engine block minimizes friction losses between moving parts, resulting in improved fuel economy. The careful optimization of cylinder bore and stroke dimensions, as well as the shape of the combustion chambers, enhances the efficiency of the combustion process. The careful integration of the cooling system contributes to lower operating temperatures, further enhancing efficiency.
Reducing the weight of the block also contributes to better fuel economy.
Comparison of Different Engine Block Designs
| Engine Block Design | Performance Characteristics | Cost |
|---|---|---|
| Cast Iron (Conventional) | High strength, good durability, proven reliability | Moderate |
| Aluminum Alloy (Lightweight) | Excellent weight reduction, good thermal conductivity | Higher than cast iron, but lower than some others |
| Magnesium Alloy (Ultra-Lightweight) | Exceptional weight reduction, potentially higher performance | Highest |
| Hybrid Designs (Combining Materials) | Optimized for specific applications | Variable, depending on the materials used |
The table above presents a simplified comparison. Actual performance and cost depend on specific design choices and manufacturing processes. For example, a hybrid design combining cast iron for critical load-bearing components with aluminum for other areas could potentially optimize both performance and cost.
Applications and Variations
Engine blocks, the heart of any internal combustion engine, aren’t just a single design. Their versatility allows them to power a diverse array of vehicles and even equipment beyond the typical automobile. Understanding the variations and applications highlights the adaptability and crucial role of this fundamental component.
Types of Engines Utilizing Engine Blocks
Engine blocks underpin a wide range of engine types, each tailored to specific performance needs and vehicle characteristics. From the economical efficiency of a four-cylinder engine to the raw power of a V12, the block’s design is intrinsically linked to the engine’s output. Different configurations, like inline, V-type, and radial engines, all require uniquely shaped engine blocks to accommodate their specific components and arrangements.
Engine Block Design Variations for Different Vehicle Types
The design of an engine block isn’t arbitrary; it’s meticulously crafted to meet the demands of the vehicle it will power. Passenger cars, trucks, and motorcycles each necessitate different block characteristics. Passenger cars often favor lightweight designs for fuel efficiency, while trucks prioritize durability and strength to withstand heavier loads. Motorcycle engines, meanwhile, often benefit from compact designs that facilitate maneuverability.
These variations demonstrate the nuanced engineering considerations inherent in crafting engine blocks for diverse applications.
Role of Engine Blocks in Applications Beyond Automobiles
The utility of engine blocks extends far beyond the automotive world. They are fundamental components in generators, pumps, and other machinery requiring a robust and reliable power source. Industrial applications often demand specific engine block designs tailored to withstand harsh operating conditions and demanding power requirements. Consider agricultural equipment, where engine blocks must endure the rigors of fieldwork and fluctuating temperatures.
Their presence in diverse equipment showcases the versatility of engine block technology.
Specialized Engine Blocks in Specific Industries
Certain industries demand engine blocks with specialized features to meet particular needs. For instance, marine engines often require blocks resistant to saltwater corrosion and high-pressure environments. Similarly, specialized blocks are crafted for racing applications, prioritizing lightweight construction and high-performance capabilities. These examples highlight the industry-specific adaptations and modifications in engine block design.
Categorization of Engine Blocks by Vehicle Type and Application
| Vehicle Type | Application | Design Considerations |
|---|---|---|
| Passenger Cars | Fuel Efficiency, Comfort | Lightweight construction, compact design, reduced friction |
| Trucks | Heavy Loads, Towing | Robust construction, high-strength materials, reinforced components |
| Motorcycles | Maneuverability, Performance | Compact design, lightweight materials, balanced power delivery |
| Marine Engines | Boats, Ships | Corrosion resistance, high-pressure tolerance, vibration dampening |
| Industrial Generators | Power Generation | High-torque output, robust construction, long operational lifespan |
Maintenance and Troubleshooting
Keeping your engine block in tip-top shape is crucial for its longevity and performance. Regular maintenance not only prevents costly repairs down the road but also ensures a smooth and efficient driving experience. Proper care involves a combination of scheduled services and attentive observation of potential warning signs. Ignoring these signals can lead to significant damage and costly repairs.Engine blocks, the heart of any internal combustion engine, are subjected to immense pressure and stress.
Over time, wear and tear, combined with environmental factors, can lead to various issues. A proactive approach to maintenance, coupled with a keen eye for early warning signs, can dramatically extend the lifespan of your engine block.
Importance of Regular Maintenance
Regular maintenance is paramount to the health and longevity of an engine block. Scheduled services, including oil changes, filter replacements, and coolant checks, are crucial for preventing the buildup of contaminants and ensuring proper lubrication. This proactive approach helps maintain optimal engine performance and prevents potential breakdowns. A well-maintained engine block runs smoother, operates more efficiently, and minimizes the risk of costly repairs.
Common Engine Block Issues and Causes
Several issues can plague engine blocks, impacting their functionality and performance. One common concern is excessive wear and tear, stemming from the continuous friction and pressure during operation. This can manifest in various ways, from leaks and cracks to piston ring issues. Another common problem is coolant system failure. Corrosion, mineral deposits, or inadequate coolant levels can all contribute to this issue, potentially leading to overheating and damage.
Water leaks and block cracks are also frequent issues, often resulting from inadequate sealing or excessive pressure buildup.
Troubleshooting Guide for Typical Engine Block Problems
A systematic approach to troubleshooting is key. When encountering engine block problems, start by checking for obvious signs, such as leaks, unusual noises, or temperature fluctuations. If leaks are present, pinpoint their source and address the underlying issue. If noises are heard, identify the specific sound and determine its location within the engine. Monitoring temperature fluctuations is also crucial.
Consult your vehicle’s owner’s manual for specific troubleshooting steps and procedures. Professional diagnostics are often necessary for more complex issues.
Methods of Inspecting Engine Blocks for Damage or Wear
Visual inspection is a vital initial step in identifying potential damage or wear. Look for cracks, leaks, or any unusual discoloration. Further inspection may involve specialized tools, such as pressure gauges, to assess the integrity of the coolant system and identify leaks. Ultrasonic testing or other non-destructive methods can pinpoint internal flaws or structural weaknesses, ensuring a comprehensive evaluation.
In certain cases, dismantling the engine block might be necessary to thoroughly inspect its components.
Table of Common Engine Block Issues, Causes, and Troubleshooting Steps
| Issue | Causes | Troubleshooting Steps |
|---|---|---|
| Leaks | Loose gaskets, worn seals, cracks | Identify leak source, replace damaged components, check for pressure buildup |
| Excessive Noise | Bearing wear, loose components, valve problems | Identify sound location, assess component condition, consult owner’s manual for specific checks |
| Overheating | Coolant system failure, clogged radiator, low coolant levels | Check coolant levels, inspect radiator, assess coolant system pressure, replace coolant if necessary |
| Unusual vibrations | Imbalance in rotating components, worn bearings | Inspect rotating parts for balance and wear, assess bearing condition, check for damage to connecting rods or other components |
Environmental Impact
Engine blocks, the heart of internal combustion engines, play a crucial role in our modern world. However, their manufacturing and use have a significant environmental footprint. Understanding this impact is vital for developing sustainable practices and moving towards a greener future for transportation. The choices we make in engine block design and material selection directly influence the environmental burden of vehicles.
Manufacturing Impact
Engine block production involves complex processes that consume substantial energy and resources. Casting, machining, and finishing processes often use large amounts of energy, potentially leading to high carbon emissions. The raw materials required for manufacturing, such as iron, aluminum, and their alloys, also contribute to the overall environmental footprint. Furthermore, the disposal of manufacturing waste and byproducts needs careful consideration to minimize environmental harm.
Minimizing energy consumption during production and utilizing recycled materials are key steps in reducing this impact.
Sustainability of Materials
The choice of material significantly affects the environmental impact of an engine block. Aluminum alloys, often used for their lightweight properties, have a lower carbon footprint compared to cast iron in some manufacturing processes. However, the entire lifecycle of the material, from extraction to recycling, must be assessed. Recycled materials can drastically reduce the environmental burden of manufacturing.
The sustainability of a material hinges on its entire lifecycle assessment, encompassing extraction, processing, manufacturing, use, and end-of-life management.
Fuel Consumption and Engine Block Design, What is a engine block
Engine blocks are integral to achieving optimal fuel efficiency. Modern engine designs, including optimized combustion chambers and advanced cooling systems, can significantly reduce fuel consumption. These improvements lead to lower emissions and a smaller carbon footprint. For example, the use of direct injection systems and variable valve timing mechanisms directly contribute to improved fuel efficiency, lowering the environmental impact of vehicle operation.
Impact on Emissions
Engine block design plays a crucial role in regulating emissions. Improved combustion efficiency, optimized airflow, and the use of catalytic converters directly reduce harmful pollutants released into the atmosphere. Modern engine blocks often incorporate advanced technologies to minimize emissions, including exhaust gas recirculation (EGR) systems and particulate filters. These innovations are essential for meeting stringent emission standards and lowering the environmental impact of vehicles.
Comparison of Engine Block Materials
| Material | Environmental Footprint (estimated) | Advantages | Disadvantages |
|---|---|---|---|
| Cast Iron | High | High strength, durability | Heavier, higher energy consumption in production |
| Aluminum Alloy | Medium | Lightweight, good heat dissipation | Potentially lower strength, more expensive manufacturing in some cases |
| Magnesium Alloy | Low | Very lightweight | Lower strength than aluminum, more complex manufacturing |
Note: Environmental footprint is a complex metric and depends on various factors, including the specific manufacturing process and lifecycle assessment. The table provides a general comparison.
Final Wrap-Up
Source: lhrhealthcare.com
In conclusion, the engine block is a remarkable testament to human ingenuity. Its role in converting fuel to power is fundamental to modern transportation. From its basic design to its intricate manufacturing, the engine block is a marvel of engineering, designed to perform tirelessly under demanding conditions. We have explored its purpose, components, and considerations, from materials to maintenance.
Ultimately, this examination underscores the engine block’s crucial role in the world around us.
Commonly Asked Questions
What are the common materials used in engine block construction?
Common materials include cast iron, aluminum alloys, and sometimes, specialized steel alloys. The choice of material often depends on factors like desired strength, weight, and cooling efficiency.
What are some common problems associated with engine blocks?
Cracks, warping, and leaks are common issues. These problems can stem from overheating, poor maintenance, or even collisions. Regular maintenance and proper cooling are key to preventing these problems.
How does engine block design impact fuel efficiency?
Engine block design significantly impacts fuel efficiency. Factors like the shape of the combustion chambers, the efficiency of the cooling system, and the flow of coolant all contribute to overall fuel economy.
What are the environmental considerations regarding engine blocks?
The manufacturing process and the operation of the engine itself have environmental impacts. The choice of materials and the design of the cooling system can play a role in minimizing the environmental footprint.
